Vehicles With Steering Wheel Buttons

  1. Turn the key to position 2 in the ignition lock.
  2. Press the forward or back button on the steering wheel (left side) repeatedly until the standard display shows.
    NOTE: Standard display is the odometer/trip meter. On most models, the standard display will show when the ignition is turned on.
  3. Press the UP or DOWN arrow button on the steering wheel (left side) repeatedly until the current pressure of the individual tires is displayed, or the display shows the following message: TIRE PRESS. DISPLAYED AFTER DRIVING FOR SEVERAL MINUTES.

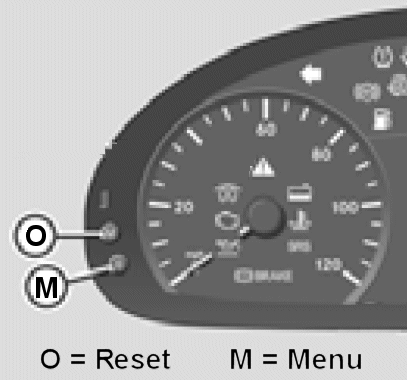

  4. Press the O reset button on the instrument cluster (left side - See Figure). The following message is displayed: MONITOR CURRENT TIRE PRESSURE?
  5. Press the PLUS (+) button on the steering wheel (right side). The following message is displayed: TIRE PRESS. MONITOR REACTIVATED.
  6. The tire pressure monitor activation process has begun. The tire pressures measured for the individual wheels are stored as the new reference values, provided that the tire pressure monitor considers them to be plausible.
NOTE: If you wish to cancel the reactivation process: Press the MINUS (-) button on the steering wheel.
