Remove/Install Pressure Differential Sensor - Ar07.04-D-0006SG

ENGINES 642.896 /898 in MODEL 906

Shown for engine 642.896

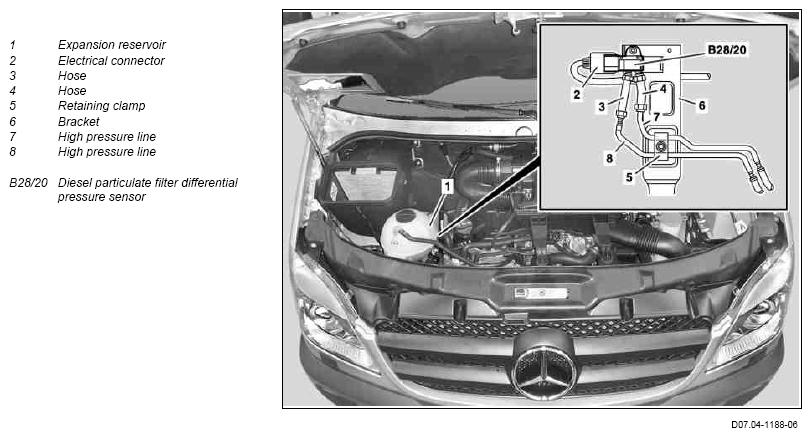

Fig 1: Pressure Differential Sensor Component Locations #1
G08208147Courtesy of MERCEDES-BENZ USA

Engine 642.898

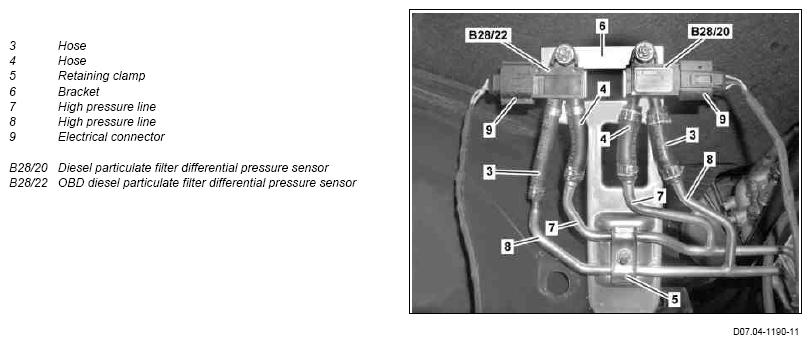

Fig 2: Pressure Differential Sensor Component Locations #2
G08208148Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove expansion reservoir (1) and lay down to side IMPORTANT Do not detach electrical connector and coolant hose AR20.30-D-4950SD
2 Disconnect electrical connector (2) from diesel particulate filter differential pressure sensor (B28/20) With engine 642.896
3 Disconnect electrical connector (9) from diesel particulate filter differential pressure sensor (B28/20) and OBD diesel particulate filter differential pressure sensor (B28/22) With engine 642.898
    IMPORTANT Mark electrical connectors (9) to prevent mixup when installing.
4 Remove diesel particulate filter differential pressure sensor (B28/20) on holder (6) With engine 642.896
    TORQUE SPECIFICATION *BA07.04-N-1005-01G
5 Remove diesel particulate filter differential pressure sensor (B28/20) and OBD diesel particulate filter differential pressure sensor (B28/22) from bracket (6) With engine 642.898
    TORQUE SPECIFICATION *BA07.04-N-1005-01G
6 Remove retaining clamp (5) from bracket (6)
7 Remove pressure lines (7, 8) with diesel particulate filter differential pressure sensor (B28/20) from bracket (6) With engine 642.896
8 Remove pressure lines (7, 8) with diesel particulate filter differential pressure sensor (B28/20) and OBD diesel particulate filter differential pressure sensor (B28/22) from bracket (6) With engine 642.898
9 Remove hoses (3, 4) from pressure lines (7, 8) and remove diesel particulate filter differential pressure sensor (B28/20) With engine 642.896
    NOTES Do not remove hoses (3, 4) from diesel particulate filter differential pressure sensor (B28/20 to prevent diesel particulate filter differential pressure sensor (B28/20).
IMPORTANTInstallation:  Replace hose clamps.
10 Remove hoses (3, 4) from pressure lines (7, 8) and remove diesel particulate filter differential pressure sensor (B28/20) and OBD diesel particulate filter differential pressure sensor (B28/22) With engine 642.898
NOTES Do not remove hoses (3, 4) from diesel particulate filter differential pressure sensor (B28/20) and OBD diesel particulate filter differential pressure sensor (B28/22) to prevent damage.
IMPORTANTInstallation:  Replace hose clamps.
11 Install in the reverse order
DANGER Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running Secure vehicle to prevent it from moving by itself.
Wear closed and snug-fitting work clothes.
Do not touch hot or rotating parts.		 AS00.00-Z-0005-01A
12 Test run engine and check exhaust system for leakage in area of diesel particulate filter differential pressure sensor (B28/20) or OBD diesel particulate filter differential pressure sensor (B28/22)
PRESSURE DIFFERENTIAL SENSOR TORQUE SPECIFICATIONS - ENGINE 642.896/642.898

Number Designation Engine 642.896 Engine 642.898
BA07.04-N-1005-01G Bolt, pressure differential sensor to bracket Nm 8 8
