OEM Electrical Component Locator - Model 906: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|

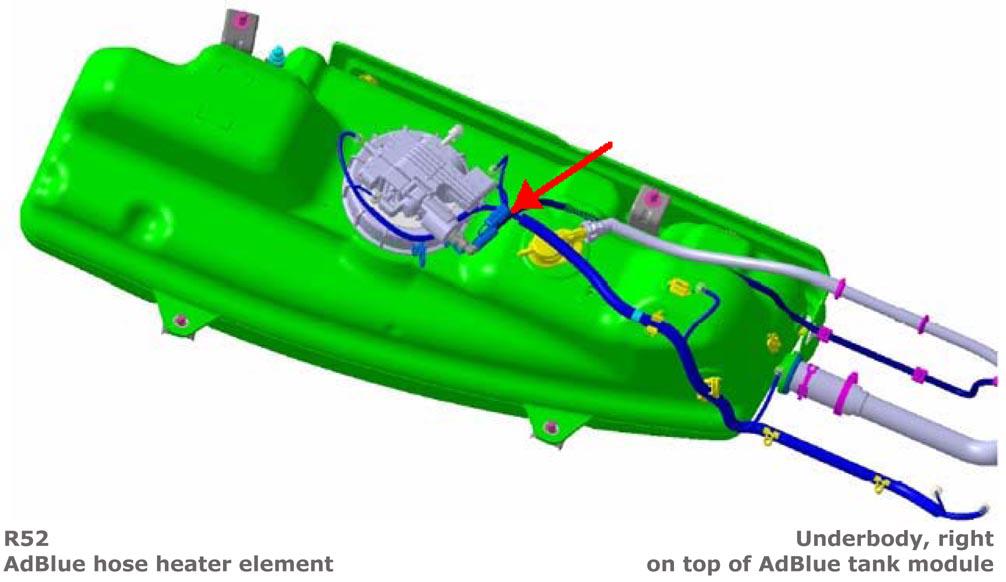

| AdBlue Hose Heater Element | Top of AdBlue tank module. See Figure. |
| AdBlue Tank Heater Element | Top of AdBlue tank module. See Figure. |

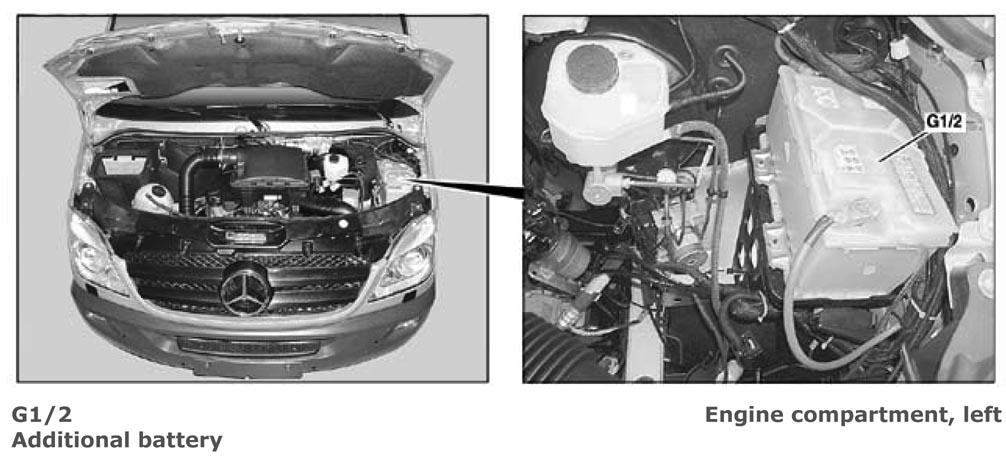

| Additional Battery | Left side of engine compartment. See Figure. |

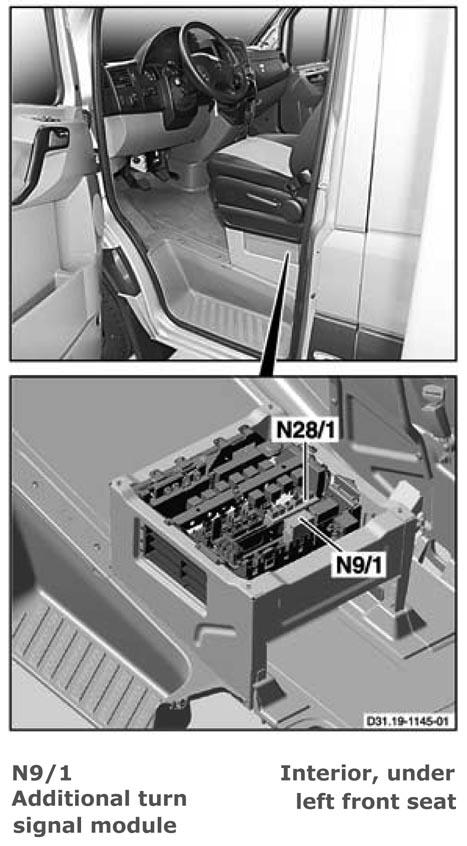

| Additional Turn Signal Module (N9/1) | Under driver's seat. See Figure. |
| Airbag Squib (Driver) (R12/3) | In steering wheel. See Figure. |
| Airbag Squib (Front Passenger) (2/4) | Right side of dash. See Figure. |
| Alternator | Right front of engine. |

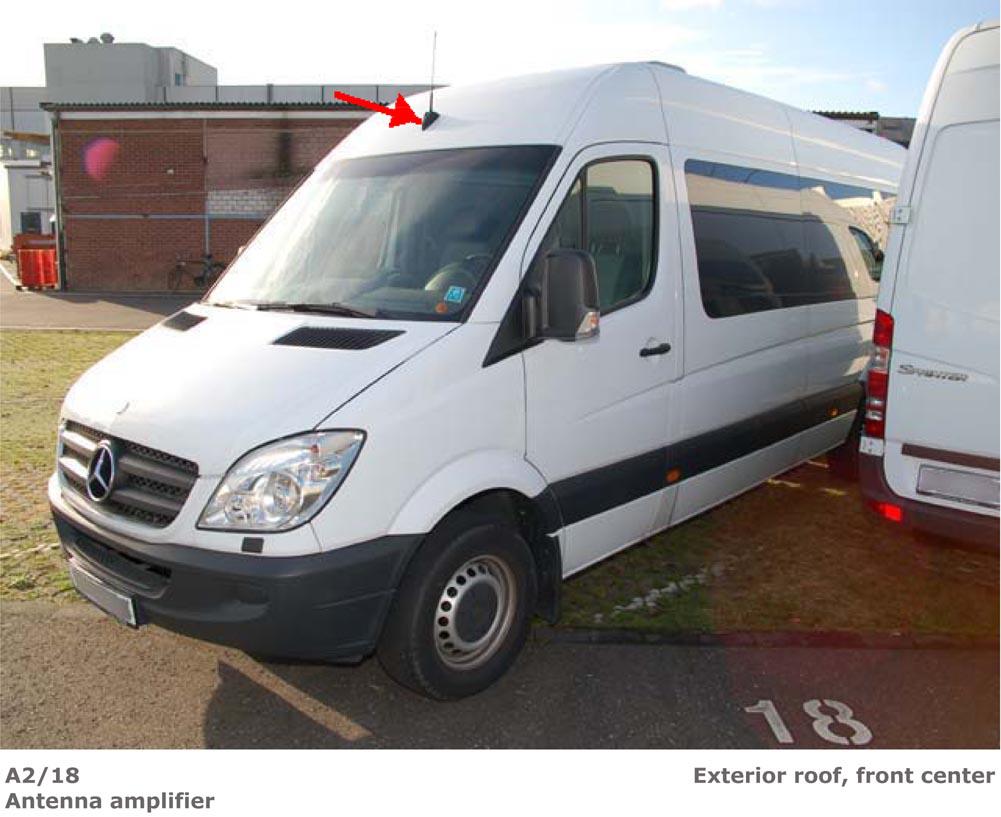

| Antenna Amplifier | Front center of roof. See Figure. |

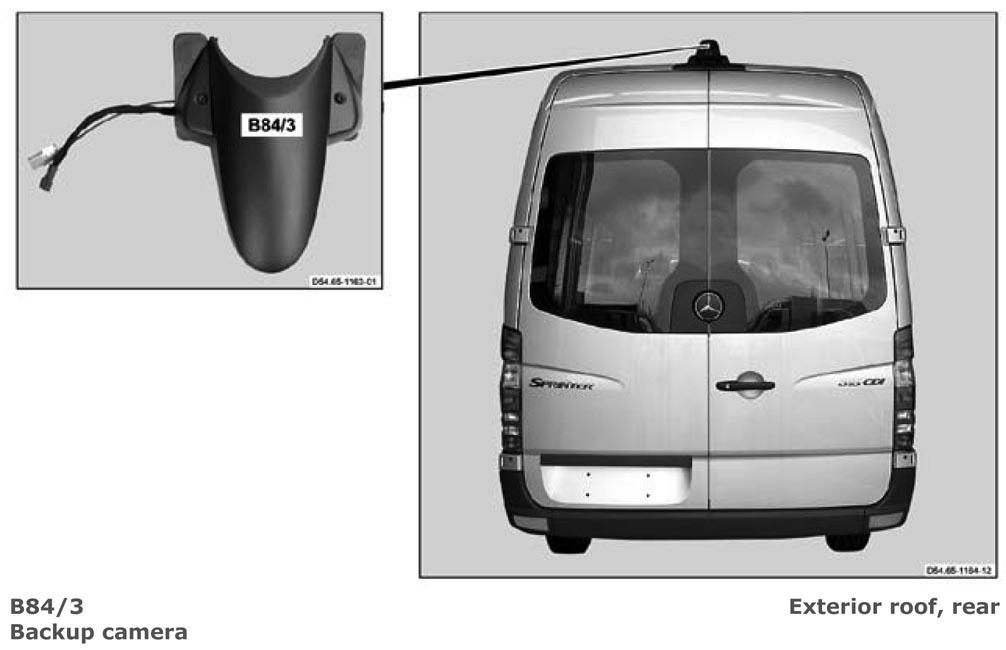

| Backup Camera | Top center rear of roof. See Figure. |
| Backup Warning Horn | Behind center of rear bumper. |

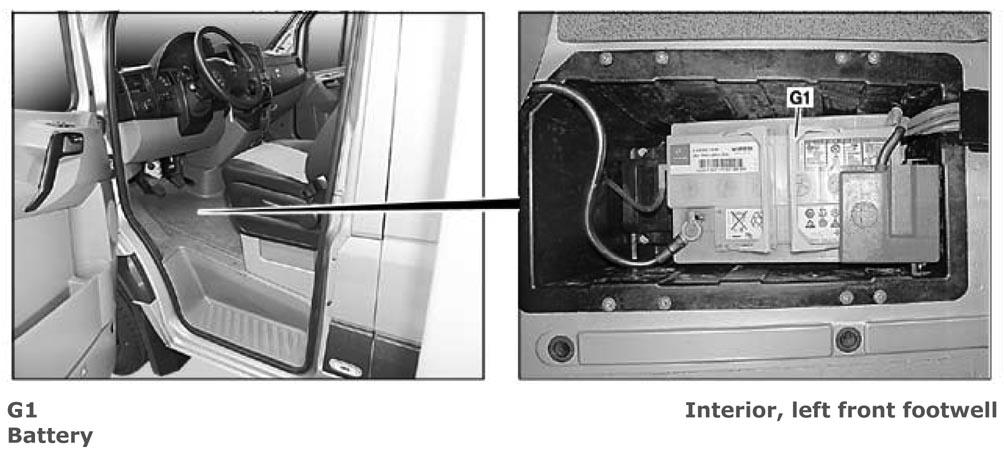

| Battery | Left front footwell. See Figure. |

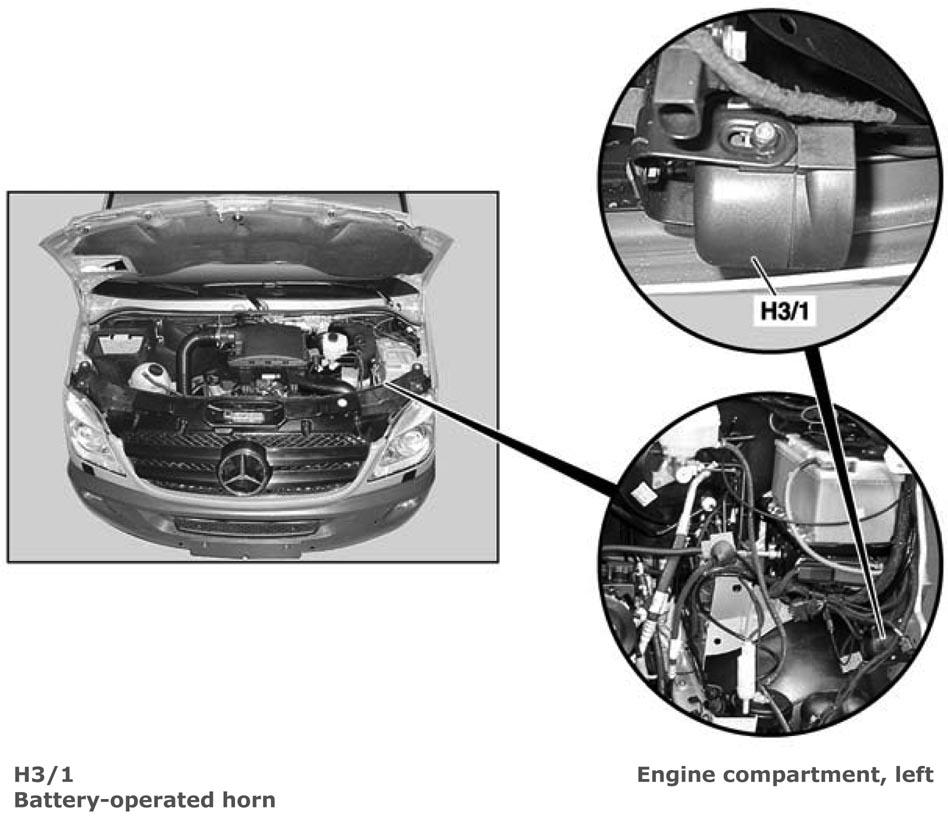

| Battery-Operated Horn | Left side of engine compartment. See Figure. |
| Blower Motor Series Resistor Group | Behind right side of dash. See Figure. |
| Cylinder Glow Plug (6) (R9/1, R9/2, R9/3, R9/4, R9/5 & R9/6) | Top of respective cylinder. See Figure. |

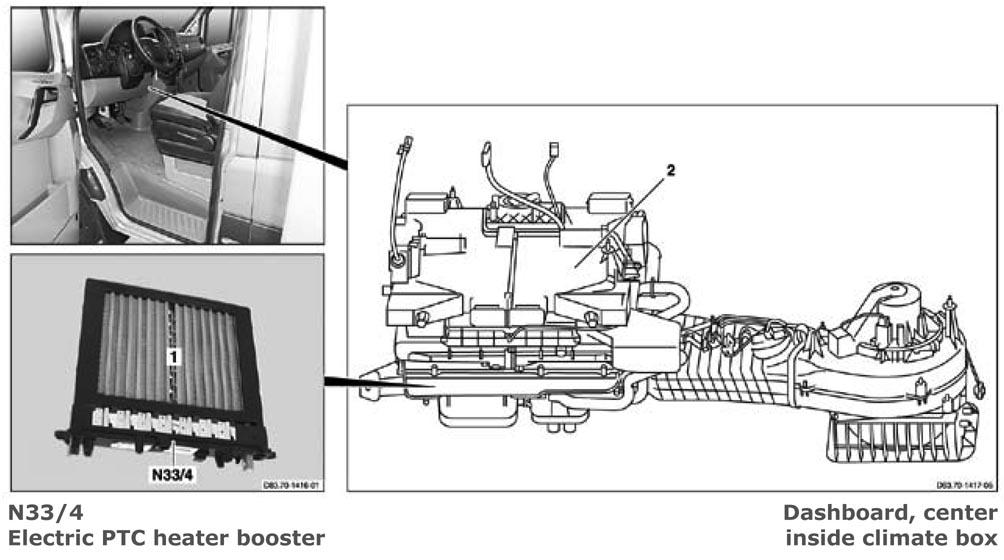

| Electric PTC Heater Booster (N33/4) | Inside climate box. See Figure. |

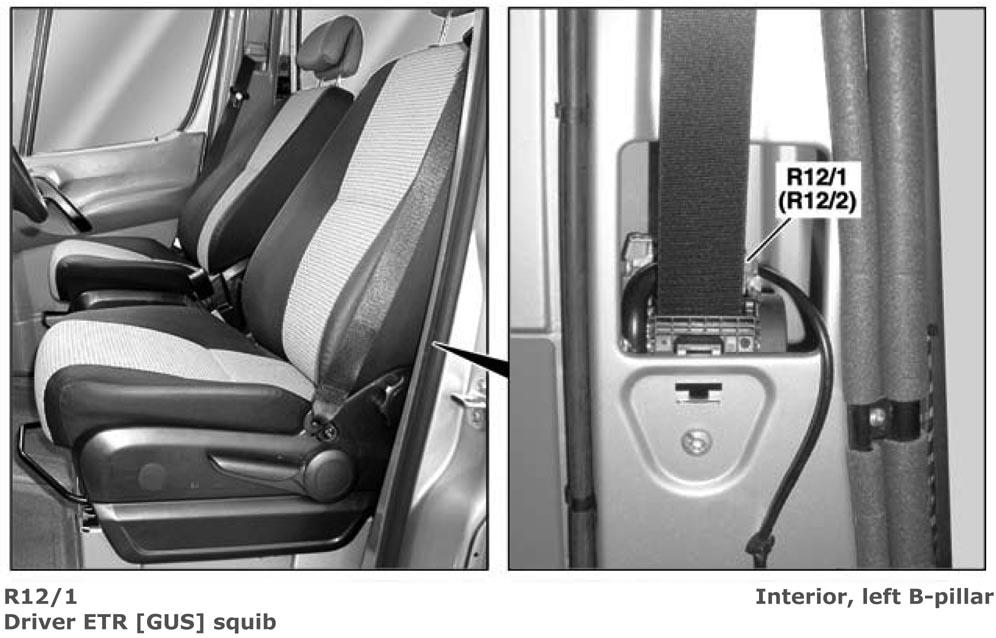

| ETR [GUS] Squib (Driver - R12/1 / Front Passenger - R12/2) | In respective "B" pillar. See Figure. |

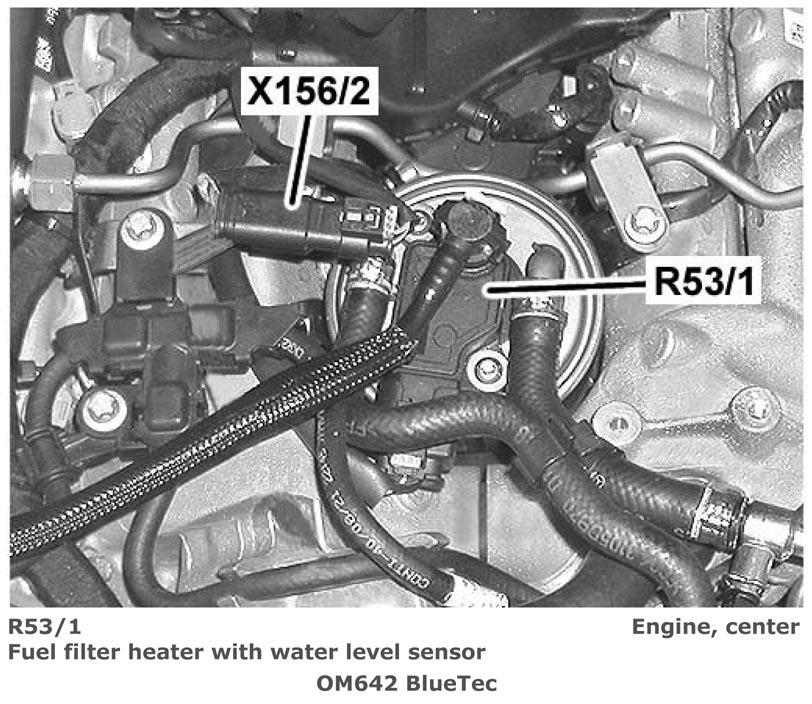

| Fuel Filter Heater With Water Level Sensor (R53/1) | Top center of engine. See Figure. |
| Glow Pin (Auxiliary Hot Water Heating) | Part of hot water auxiliary heating control unit. |
| Glow Pin (Auxiliary Warm Water Heating) | Part of warm water auxiliary heater 2 control unit. |
| Hands-Free System Microphone | In roof console. |

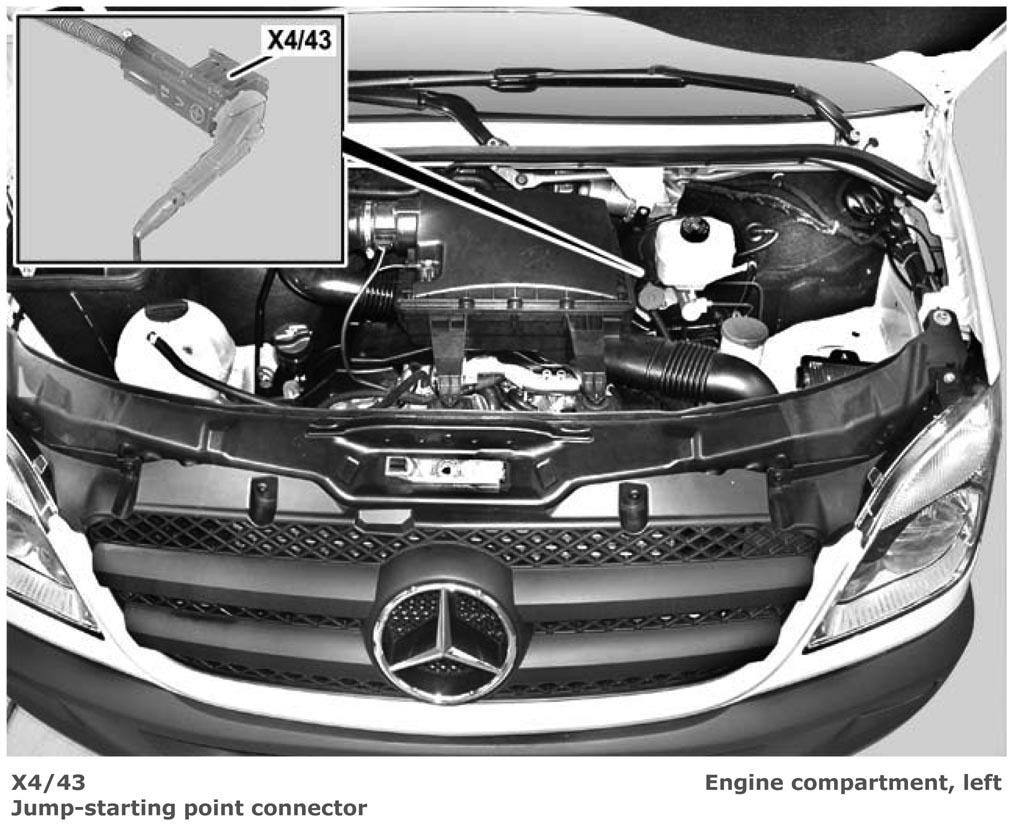

| Jump-Starting Point Connector (X4/43) | Left side of engine compartment. See Figure. |

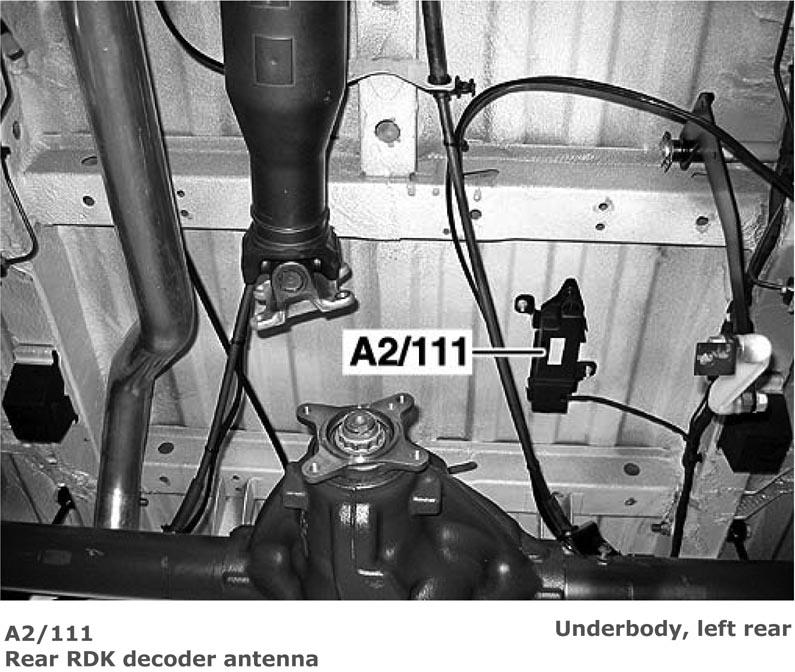

| Rear RDK Decoder Antenna (A2/111) | Under left rear of vehicle. See Figure. |
| Signaling Horn | Behind left side of front bumper. |
| Stationary Heater Radio Signal Receiver | Under right side of dash. See Figure. |

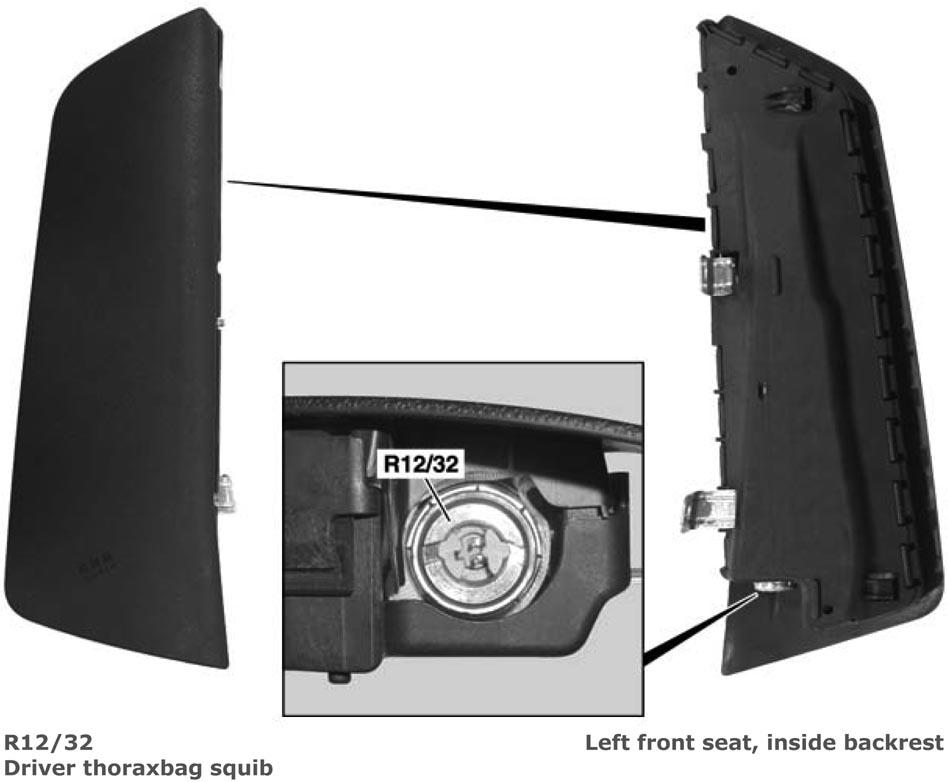

| Thoraxbag Squib (Driver - R12/32 / Front Passenger - R12/33) | Outer edge of respective seat back. See Figure. |
| Trailer Socket (13-Pin) | Under center of rear bumper. |

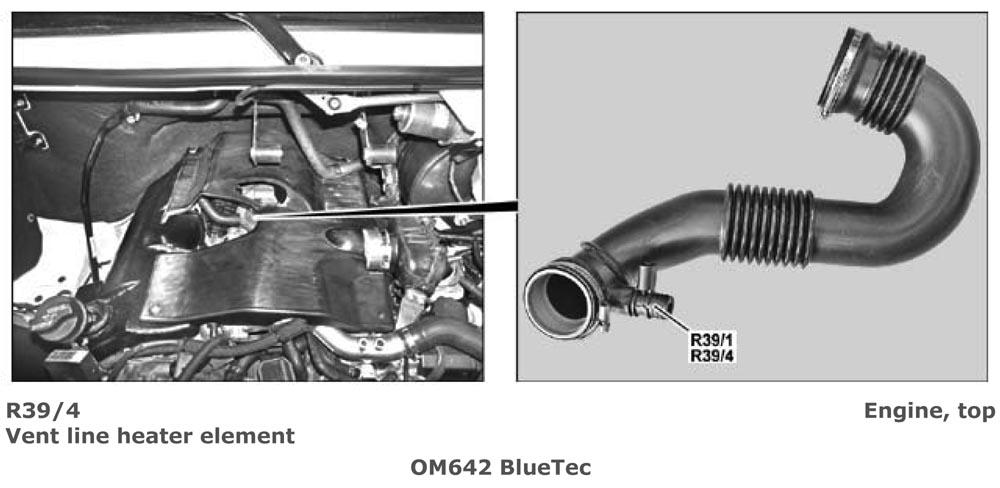

| Vent Line Heater Element (R39/4) | Top of engine. See Figure. |

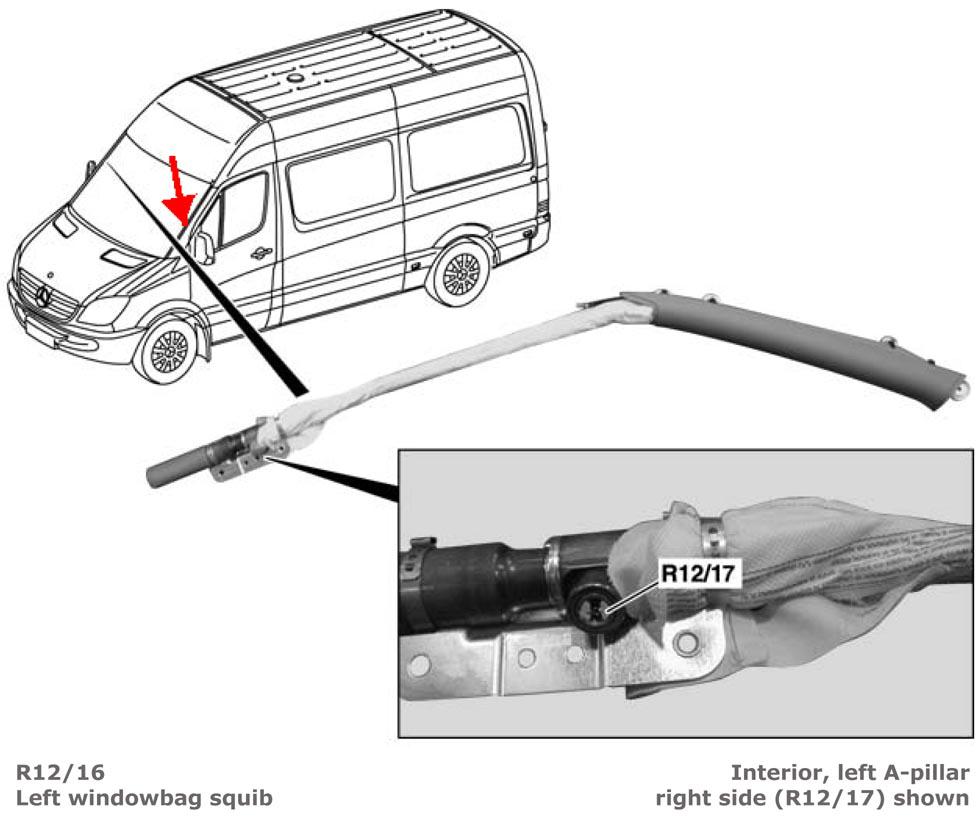

| Windowbag Squib (Left - 2/16 / Right - R12/17) | In respective "A" pillar. See Figure. |
