Keyless Entry Authentication, Function - GF80.61-D-2014H
MODEL 906.611/613/631/633/635/637/653/655/657/711/713/731/733/735 with CODE (FY9) Keyless entry+slide with CODE (T55) Electrical actuation for right sliding door
MODEL 906.611/613/631/633/635/637/653/655/657/711/713/731/733/735 with CODE (FY9) Keyless entry+slide with CODE (T56) Electrical actuation for left sliding door
Waking up and identifying
Waking up
When approaching the vehicle (approx. 4 m), the transmitter key (A8/1) is woken up via the Keyless Entry control unit (N69/5) by a "Low frequency signal".
Approx. 20 ms later, the Keyless Entry control unit transmits the vehicle identification via a "High frequency signal" to the transmitter key.
Feedback
Authentication

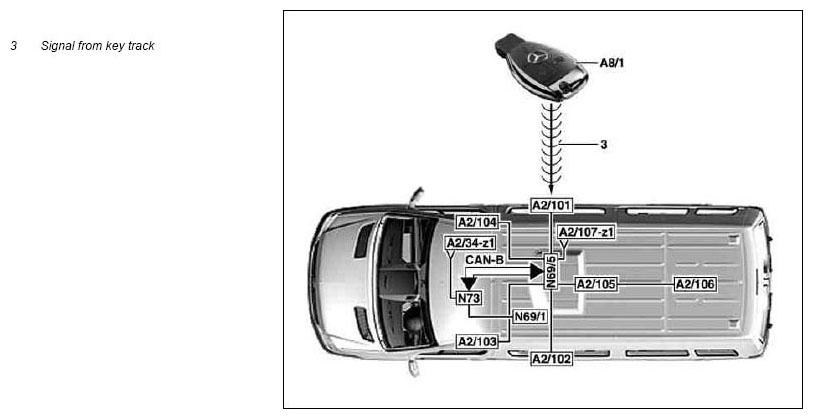

The transmitter key transmits information via a "high-frequency signal" via the key track.
| Keyless Entry control unit, component description | GF80.61-D-4205H | |
| Transmitter key, component description | With 3 buttons | GF80.57-D-6010HA |
| Keyless Entry wire antenna, component description | GF82.62-D-4250H |
