Remove/Install Electronic Accelerator - Ar30.20-D-2000SD

MODEL 906

Courtesy of MERCEDES-BENZ USA

	Remove/install

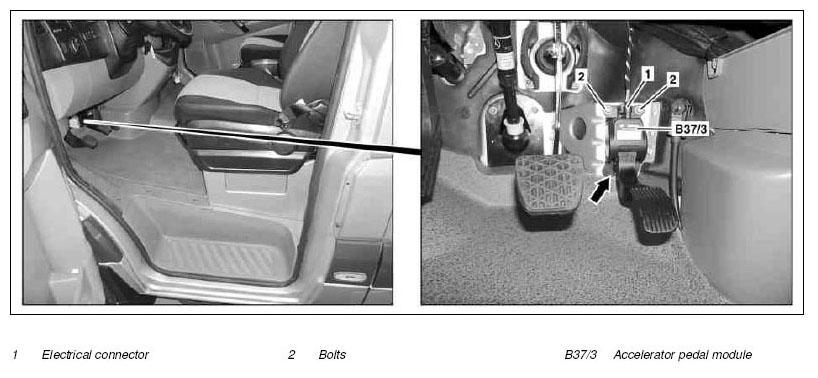

1	Disconnect electrical connector (1)
2	Remove bolts (2)		*BA30.20-N-1001-01B
3	Remove accelerator pedal module (B37/3)	Pay attention to the correct seat of the accelerator pedal module (B37/3) in the lower guide (arrow).
4	Install in the reverse order

ELECTRONIC ACCELERATOR PEDAL ACTUATOR

Number	Designation		Engine 642, 651 in model 906
BA30.20-N-1001-01B	Bolt, electronic accelerator to bracket	Nm	8
