TEMPOMAT Decelerate Function - GF30.30-D-2009H

MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735 with CODE (MS1) Cruise control

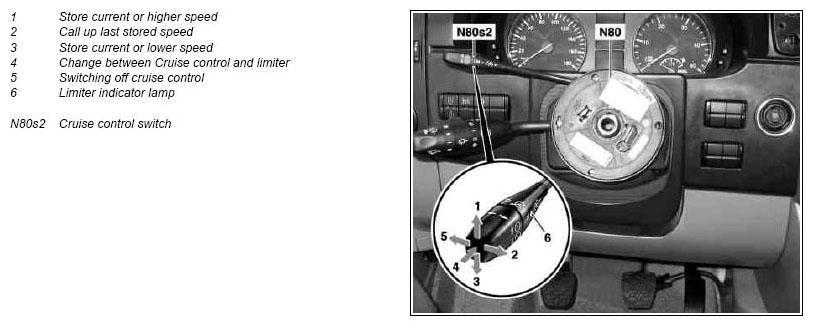

G10886440Courtesy of MERCEDES-BENZ USA

For a set Cruise control the vehicle can be decelerated in 1 km/h steps from the stored speed by actuating the Cruise control switch in the position "Store current or lower speed". The decrease in speed takes place down to the minimum possible speed. Upon releasing the cruise control switch in its design position the last speed reached is stored.

Component description for the CC [TPM] switch GF30.20-D-2100H
Component description for the ESP control unit GF42.45-D-5118H
Component description for the steering column module GF54.21-D-6050H
