Selector range sensor component description - GF27.19-P-5146GZ

TRANSMISSION 722.9 in MODEL 164.1 /8, 216, 221, 251.0 /1

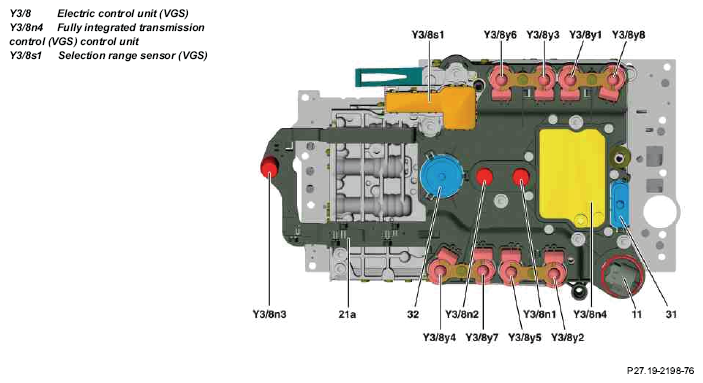

Fig 1: Identifying Selector Range Sensor Component

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The selection range sensor (VGS) is integrated in the electric control unit (VGS).

Task

The task of the selection range sensor (VGS) is to detect the selection ranges "P", "R", "N", "D" and the intermediate positions.
