ME engine speed signal - function - GF07.61-P-3017BK
ENGINE 113.967 in MODEL 219
ENGINE 113.964 in MODEL 164.1
ENGINE 113.971 in MODEL 251

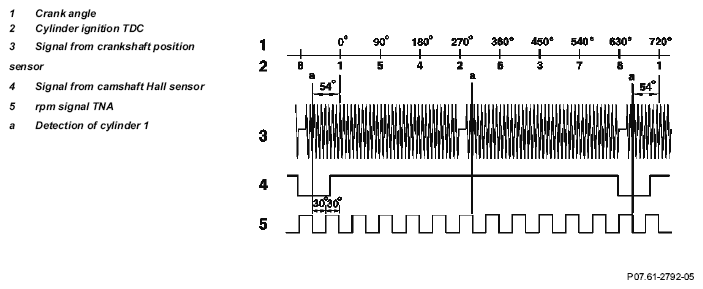

Signal assignment
The short-circuit proof engine speed signal "TNA" is generated from the signals from the crankshaft Hall sensor in the ME control unit. The output stage output can accept a maximum load of 20 mA.
The signal is picked up at the data link connector. In addition, the control unit outputs a CAN message with the engine speed to further control units and to the instrument cluster.
The engine speed signal "TNA" is a square wave signal with a constant duty cycle. 6 pulses are output per engine revolution. If the signal from the crankshaft Hall sensor fails, then the signals of the camshaft Hall sensor are used as a replacement.
The crankshaft Hall sensor signal is "LOW" in ignition TDC on the 1st cylinder.
| Component description for the engine electronics control unit | GF07.61-P-6000BK | ||
| Component description for the crankshaft position sensor | GF07.04-P-6010BK | ||
| Component description for the camshaft Hall sensor | GF07.04-P-6020BK |
