Knock sensor component description - GF07.04-P-6030V

ENGINE 272.920 in MODEL 203

ENGINE 272.922 in MODEL 211

ENGINE 272.940 in MODEL 203, 209

ENGINE 272.941 in MODEL 203

ENGINE 272.942 in MODEL 171

ENGINE 272.943 in MODEL 211

ENGINE 272.944 in MODEL 211

ENGINE 272.945 in MODEL 251

ENGINE 272.946 in MODEL 221

ENGINE 272.960 in MODEL 203, 209

ENGINE 272.963 in MODEL 171

ENGINE 272.964 in MODEL 211, 219

ENGINE 272.965 in MODEL 221

ENGINE 272.966 in MODEL 230

ENGINE 272.967 in MODEL 164, 251

ENGINE 272.970 in MODEL 203

ENGINE 272.972 in MODEL 211

ENGINE 272.975 in MODEL 221

ENGINE 273.922 in MODEL 221

ENGINE 273.923 in MODEL 164

ENGINE 273.924 in MODEL 221

ENGINE 273.943 in MODEL 164

ENGINE 273.960 in MODEL 211, 219

ENGINE 273.961 in MODEL 216, 221

ENGINE 273.962 in MODEL 211

ENGINE 273.963 in MODEL 164, 251

ENGINE 273.965 in MODEL 230

ENGINE 273.967 in MODEL 209

ENGINE 273.968 in MODEL 221

Location

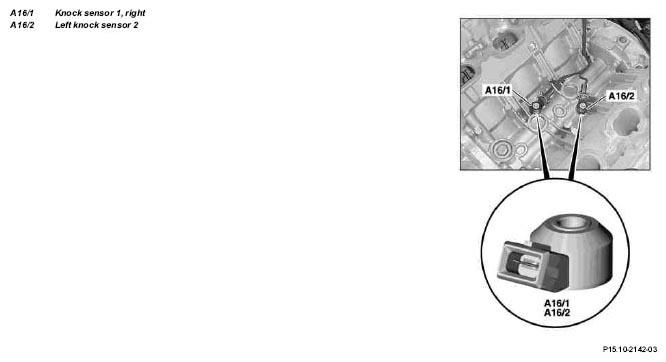

The knock sensors are located at the top of the crankcase under the intake manifold.

Task

The knock sensors detect combustion knocks at excessively high vibrations at the crankcase. Anti-knock control thereby corrects the ignition timing for each individual cylinder when the engine is warm.

Body

The knock sensors function according to the piezoceramic principle. The screened cables are connected directly to the knock sensors.

Function

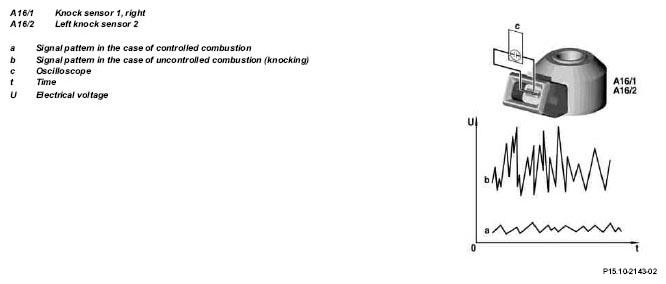

Any vibrations which occur are converted with the aid of the piezoceramic into electrical signals.

Piezo-electric effect: If a mechanical force acts on a crystal, electrical voltages are produced.

The noise signal is modulated to a DC voltage from 0.13 to 4.7 V for transmission to the ME control unit.

Knock sensor signals may also indicate engine damage, e.g. increased engine noise resulting from a widened piston groove.
