DISTRONIC, overall function engine 113, 273 - GF30.30-P-0005GZ
ENGINE 113, 156, 272, 629, 642 in MODEL 164.1 with CODE (219) Distronic (DTR)
ENGINE 273, 629, 642 in MODEL 164.8 with code (219) Distronic (DTR)
ENGINE 113, 156, 272, 642 in MODEL 251 with CODE (219) Distronic (DTR)
DISTRONIC, operation
The systems described below belong to the driving assistance systems and are offered as special equipment (SA) under the designation "DISTRONIC" with Code 219.
The DISTRONIC special equipment includes the following functionality:
- DISTRONIC (DTR)
- Distance warning system (AWS)
- Variable Speed Limiter (except
)
- Permanent Speed Limiter
DISTRONIC

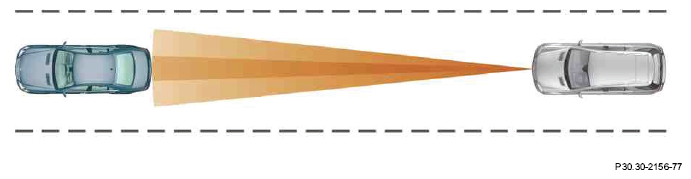

Using a radar sensor, DISTRONIC maintains the vehicle at a target distance from the vehicle ahead, set by the driver, and alerts the driver via visual and audible signals before dangerous situations arise.
The electronics activates the brakes automatically when the target distance falls short and reaccelerates back up to the target speed as soon as the traffic situation permits.
Distance warning system
The distance warning system is an additional function of DISTRONIC.
Independently of the DISTRONIC distance control, the driver can activate or deactivate the distance warning system in the instrument cluster (A1) via a menu in the instrument cluster.
| DISTRONIC, location of components | GF30.30-P-0005-01GZ |
| DISTRONIC, display and operating elements | GF30.30-P-0005-02GZ |
| DISTRONIC function diagram | GF30.30-P-0005-03GZ |
| DISTRONIC radar sensor group | GF30.30-P-0005-04GZ |
| Downhill Speed Regulation, function | GF28.19-P-3600GR |
| Variable Speed Limiter, function | GF30.30-P-3001GZ |
| Permanent speed limiter, function | GF30.30-P-3002GZ |
| DISTRONIC, function | GF30.30-P-3200GZ |
| Distance warning system, function | GF54.70-P-2000GZ |
