Rear SAM Control Unit With Fuse And Relay Module Connector End View (N10/2, Conn. 1V)

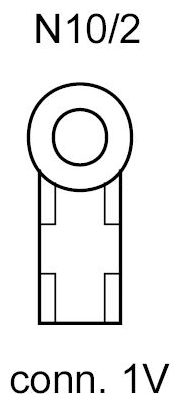

Fig 1: Rear SAM Control Unit With Fuse And Relay Module Connector End View (N10/2, conn. 1V)
G11072365Courtesy of MERCEDES-BENZ USA
