Rear SAM Control Module Connector End View (K40/5, N10/8)

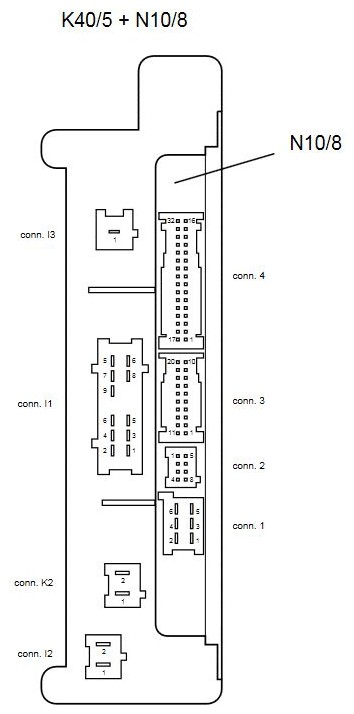

Fig 1: Rear SAM Control Module Connector End View (K40/5, N10/8)
G11074343Courtesy of MERCEDES-BENZ USA
