Transfer case 4MATIC, function - GF28.10-P-1000AV
MODEL 204.0 with TRANSMISSION 722.960 /962 /963 /964 /965 as of Model Year 2009 /AEJ 08
MODEL 204.2 with TRANSMISSION 722.962 /965 as of Model Year 2009 /AEJ 08
MODEL 204.9 with TRANSMISSION 722.960 /962 /964 /965
MODEL 212 with TRANSMISSION 722.960 /961 /962
MODEL 216 with TRANSMISSION 722.961 as of Model Year 2009 /AEJ 08
MODEL 221 with TRANSMISSION 722.960 /961 /962 as of Model Year 2009 /AEJ 08

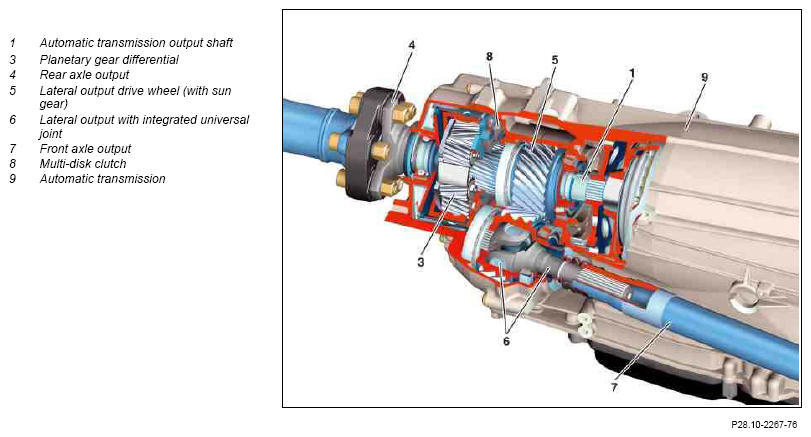

Sectional view of transfer case
Transfer case 4MATIC general information
The transfer case is integrated into the rear section of the 7-speed automatic transmission.
The single-speed lateral output with integrated universal joint (6) is a special feature.
The single-speed version, in comparison to a twin-stage lateral output used in the previous transfer case, means that a spur gear set incl. bearing is no longer required. This exerts a positive influence on drivetrain efficiency, weight and noise characteristics.
In the event of a repair the transfer case cannot be replaced separately.
It has to be replaced along with the automatic transmission.
