Video mode, function - GF82.85-P-2040SX
MODEL 216.3, 221.0 /1 except CODE (494) USA version except CODE (498) Japan version up to Model Year 8 DVD-Video; TV

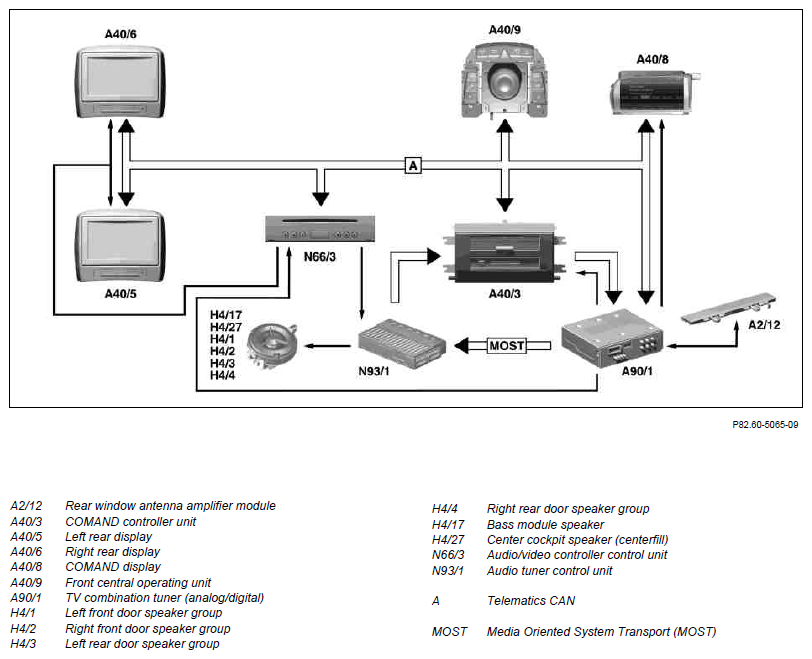

Shown on model 221 up to 31.8.06, with code (864) Rear entertainment system and with code (863) Digital/analog TV tuner
Video DVD function
The DVD drive of the COMAND controller unit supports playback of video DVDs. The video image on the color screen is shown on the COMAND display after the "VIDEO" menu and the "DVD" submenu have been activated.
Video DVD in rear with code (864) Rear entertainment system (model 221), function
The DVD drive of the audio/video controller control unit supports playback of video DVDs in the rear of the vehicle. The video image is shown on the left rear display, right rear display.
"TV" with code (863) Digital/analog TV tuner, function
The COMAND display and, additionally for model 221 with code (864) Rear entertainment system, the left rear display as well as the right rear display, can be used to show the TV image.
TV reception is activated by calling up the "TV" menu item on the COMAND display using the turn/push control (A40/9s11) of the front central operating unit.
The TV combination tuner (analog/digital) is mounted on a bracket in the rear pocket on the left in the luggage compartment.
The audio signals are transmitted by the TV combination tuner (analog/digital) to the audio tuner control unit via the MOST. There, the audio signals are amplified and the stored sound settings are implemented. The amplified audio signals are then forwarded to and output via the respectively installed speaker system. The video signals are transmitted via a separate video line to the COMAND controller unit.
The COMAND controller unit transmits the picture data to the COMAND display via a low voltage differential signal (LVDS) interface. The COMAND display outputs the TV image via the integrated color screen.
Searching and storing stations
In TV mode, the stations can be found and stored using the following functions:
- Automatic station search
- Station search using list of stations
- Station configuration through channel selection
- Station selection by entering channels directly
- Station selection from station memory
TV mute, function
The volume of the audio signals is turned down or the signals are muted with the aid of an external mute signal (e.g. telephone call). The mute status of the audio sources is maintained when it was activated before switching off.
| Front central operating unit, component description | GF54.21-P-4500SX | ||
| Cockpit central display, component description | GF54.30-P-6100SX | ||
| Audio/video controller, component description | Model 221.0/1 With code (864) Rear entertainment system |
GF82.60-P-3102SX | |
| TV tuner, component description | With code (863) Digital/analog TV tuner | GF82.60-P-3110SX | |
| Rear window antenna component description | GF82.62-P-3123SX | ||
| Rear window antenna module component description | GF82.62-P-3131SX | ||
| Audio tuner control unit, component description | Except code (810) Sound system | GF82.62-P-3132SX | |
| with CODE (810) Sound system | GF82.62-P-3132SXS | ||
| Speaker system, component description | Except code (810) Sound system | GF82.62-P-4220SX | |
| with CODE (810) Sound system | GF82.62-P-4220SXS | ||
| COMAND controller unit, component description | GF82.85-P-3136SX |
