PTS Control Module Connector End View (N62)

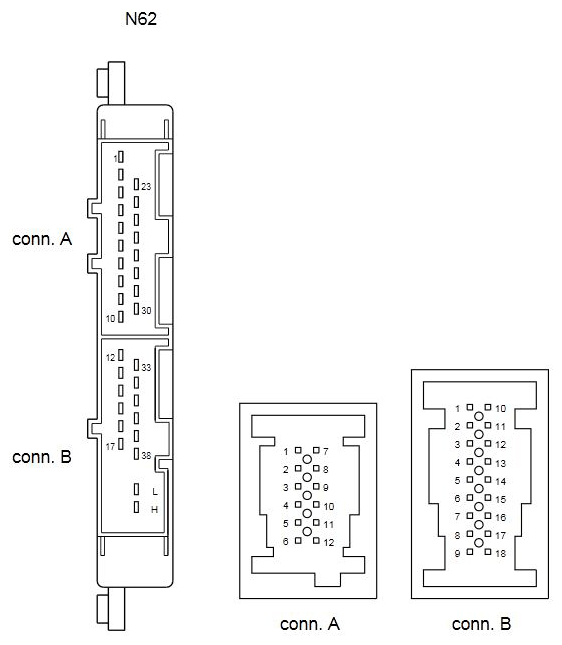

Fig 1: PTS Control Module Connector End View (N62)
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
