OEM Connector End Views -- 219 Chassis
>>
Connector End Views
>>
PTS Control Module Connector End View (N62)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
PTS Control Module Connector End View (N62)

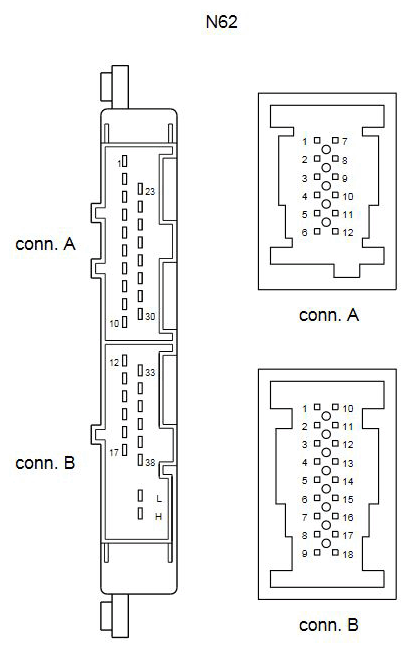

Fig 1: PTS Control Module Connector End View (N62)
Courtesy of MERCEDES-BENZ USA
Courtesy of MERCEDES-BENZ USA
