PRE-SAFE, networking of components - GF91.40-P-0001-02SC

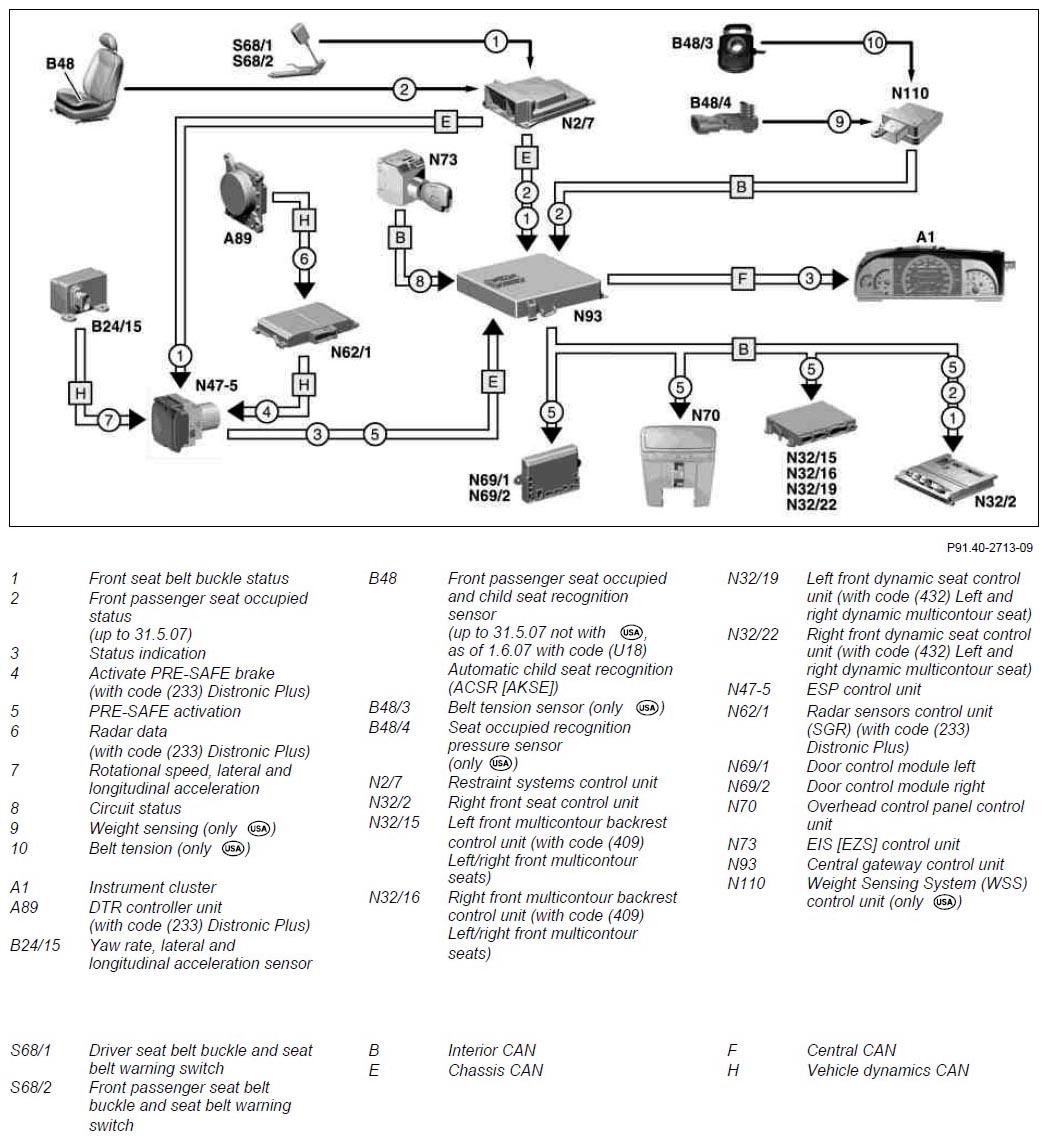

Fig 1: Networking PRE-SAFE Components
G07305026Courtesy of MERCEDES-BENZ USA
