Basic Knowledge - Voice Control System
>>
Voice control system (VCS) function diagram - GF82.70-P-0002-02T
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Voice control system (VCS) function diagram - GF82.70-P-0002-02T

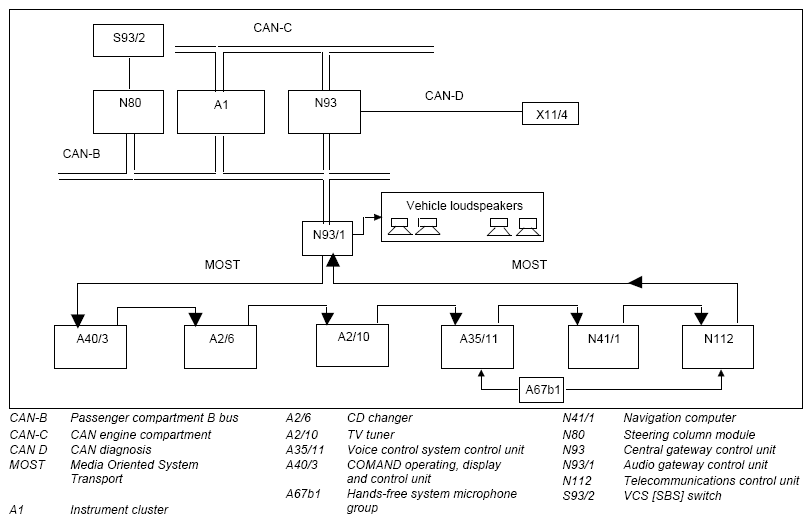

Fig 1: Voice Control System (VCS) Function Diagram
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
