Di Control Module Connector End View (N73)

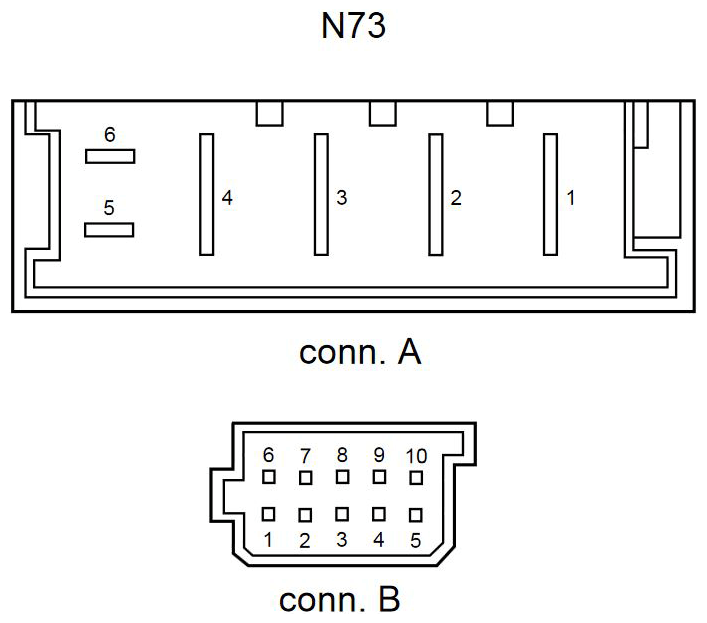

Fig 1: DI Control Module Connector End View (N73)
G11074978Courtesy of MERCEDES-BENZ USA
