OEM Connector End Views -- 230 Chassis
>>
Connector End Views
>>
Restraint Systems Control Module Connector End View (N2/7)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Restraint Systems Control Module Connector End View (N2/7)

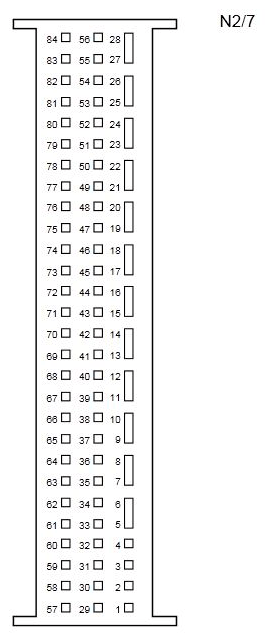

Fig 1: Restraint Systems Control Module Connector End View (N2/7)
Courtesy of MERCEDES-BENZ USA
