Cassette mode, function - GF82.85-P-2010TU

MODEL 211.0/2 up to 30.6.06 with CODE (528) HIGH Class USA

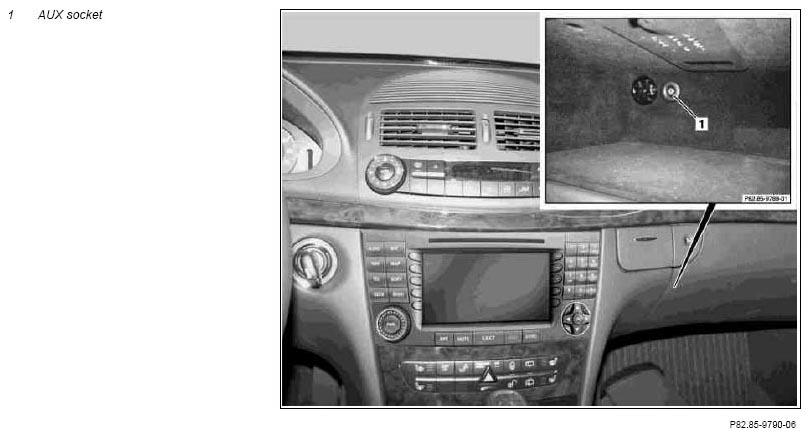

Fig 1: Locating AUX Socket

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

On this version of the COMAND operating, display and control unit (A40/3) an integral cartridge tape drive has been dispensed with. An AUX socket has been placed in the glove box for this. It serves as a connection facility for separate audio equipment, such as a Walkman.

Additional audio sources can be integrated in the system using the "Audio-AUX" function.
