Blower controller position/task/function - GF83.10-P-2141P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203

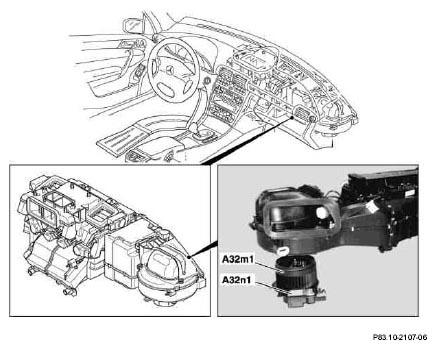

| Blower controller position | The blower controller (A32n1) is below the glove box to the right at the heater / air conditioning box and is attached to the blower (A32m1). | ||
| Blower controller task | The blower controller controls the blower power supply depending on the blower setting. | ||
| Blower controller function | GF83.10-P-2103-01P |
