Air humidity sensor, location/task/design/function - GF83.30-P-2125P
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 203.0 /2 /7 up to 31.5.01 with CODE (580) Air conditioning (or Tempmatic for USA)
MODEL 203.0 /2 /7 as of 1.6.01 with CODE (580) Automatic air conditioning
MODEL 203.0 /2 /7 as of 24.4.04 up to 28.6.06 except CODE (581) Comfort automatic air conditioning

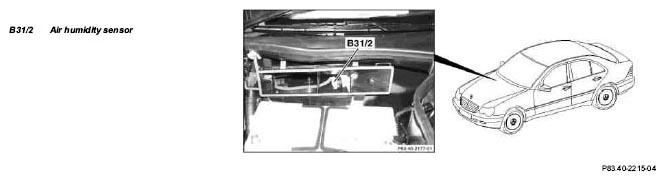

Shown on model 203.0
| Air humidity sensor, position | The air humidity sensor (B31/2) is located in the air flow upstream of the fresh air/air recirculation flap at the automatic air conditioning box. | ||
| Air humidity sensor, task | The air humidity sensor (B31/2) detects the air humidity. | ||
| Air humidity sensor, design | The air humidity sensor (B31/2) basically consists of the following parts:
|
||
| Air humidity sensor, function | GF83.30-P-2125-01P |
