Air ducting, location/task/function - GF83.10-P-2182P

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2007 Mercedes-Benz C350, 2007 Mercedes-Benz C280, 2007 Mercedes-Benz C230, 2006 Mercedes-Benz C55, and 2006 Mercedes-Benz C350. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 203.0/ 2/ 7

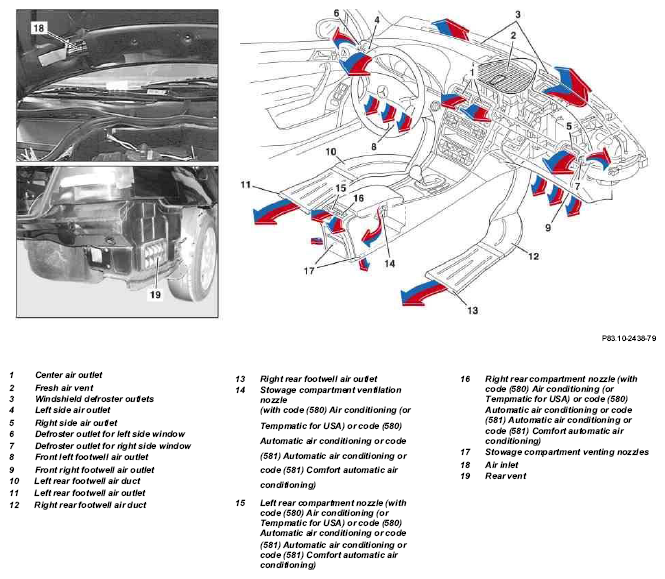

Fig 1: Identifying Ventilation System, Air Inlet And Rear Vent
G04737927

Shown on model 203.0 up to 23.4.04 with code (581) automatic air conditioning

  Air ducting, location IMPORTANT See figure.
  Air ducting, task   GF83.10-P-2182-01P
  Air ducting, function   GF83.10-P-2182-02P
