Manufacture Date After 5/31/01
- Turn ignition switch to OFF position.
- Ensure inflation pressure of all 4 tires is as specified on tire placard (located on inside of fuel filler flap).
- Turn ignition switch to ON position (engine may be on or off). The standard display menu will appear in multifunction display on instrument cluster.
- Press scroll forward or back button (located on left side of multifunction steering wheel) until TPM system menu is displayed. See Figure.

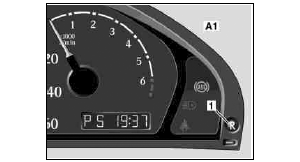

- Press reset button on right side of instrument cluster. See Figure. Message should appear in multifunction display as shown. See Fig 1.
- Using "+" button (located on right side of multifunction steering wheel), select "YES". The multifunction display will now display a message confirming TPM system is activated. If a message appears requesting reactivation, perform procedure again from beginning.
- Once engine is running, a message will be displayed indicating system will be reactivated after a driving cycle of about 10 minutes. If system reactivation was performed with engine running, this system message is set after a time delay of about 30 seconds. Until initialization sequence is complete, pressure values will not be shown in TPM system menu (they will appear as "---").
NOTE:
In the following step, pressing any button other than the "+" button will terminate reactivation process.
