Side impact, function - GF91.60-P-2005RT

MODEL 251 up to Model Year 8

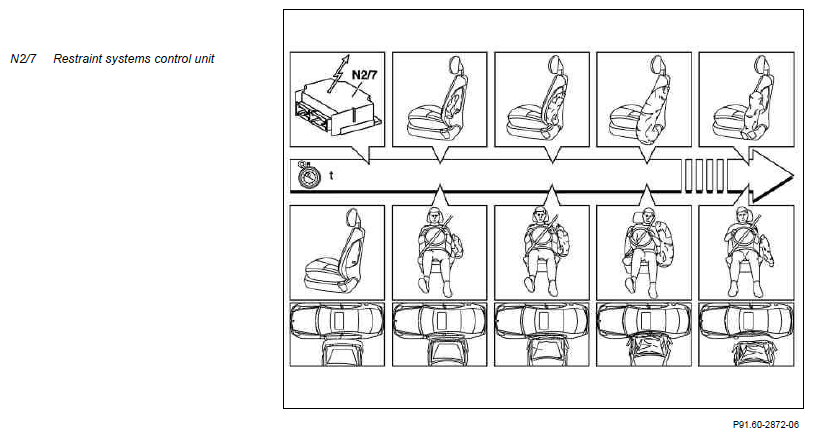

Sequence of a front sidebag deployment in the event of a side impact

Fig 1: Sequence Of Front Sidebag Deployment In Event Of Side Impact

Courtesy of MERCEDES-BENZ USA

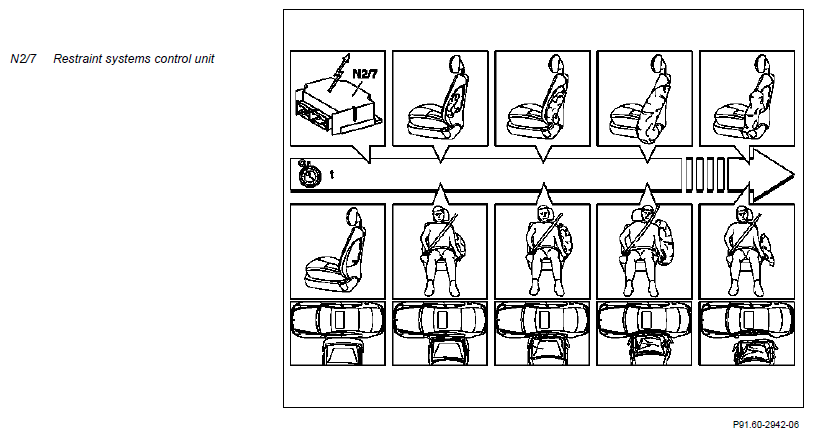

Sequence of a rear sidebag deployment in the event of a side impact

Fig 2: Sequence Of Rear Sidebag Deployment In Event Of Side Impact

Courtesy of MERCEDES-BENZ USA

Location of windowbag

Fig 3: Locating Windowbag

Courtesy of MERCEDES-BENZ USA

The sequence of the windowbag deployment runs parallel to deployment of the front and rear sidebags and protects the occupants on each side in the event of a side impact in the area of the windows from the A- to the C-pillars against injury.

If the driver sidebag sensor (A53), front passenger sidebag sensor (A54), driver door pressure sensor (B48/7), front passenger door pressure sensor (B48/8), rear door pressure sensor, driver-side (B48/9) and rear door pressure sensor, passenger-side (B48/10) recognize a side impact, then the corresponding acceleration data or pressure values are transmitted to the restraint systems control unit.

If the triggering threshold is exceeded, the restraint systems control unit sends trigger pulses to the corresponding restraint systems.

The following squibs are ignited in the event of a side collision from the left:

driver sidebag squib (R12/9)
left 2nd row sidebag squibR12/11
left windowbag squib (R12/16)

The following squibs are ignited in the event of a side collision from the right:

front passenger sidebag squib (R12/10)
right 2nd row sidebag squib (R12/12)
right windowbag squib (R12/17)

Only with code 494 USA version

In the event of a collision and if the corresponding triggering threshold is exceeded than a signal is sent from the restraint systems control unit to the emergency call system control unit (N123/4) and an automatic emergency call is made.

Supplemental restraint system (SRS), function	Model 251.1 with code 494 USA version	GF91.60-P-0002RT
Supplemental restraint system (SRS), function	Model 251 except code 494 USA version Model 251 except code 498 Japanese version	GF91.60-P-0002RTE
Sidebag sensor component description		GF91.60-P-4034RT
Driver/passenger sidebag, component description		GF91.60-P-4039RT
Rear sidebag component description		GF91.60-P-4040RT
Windowbag component description		GF91.60-P-4041RT
Restraint systems control unit, component description		GF91.60-P-4048RT
Pressure sensor, component description		GF91.60-P-4109GZ
