ME-SFI ignition ON, function - GF07.61-P-3005AMG

ENGINE 156.980 in MODEL 164, 251

ENGINE 156.982 in MODEL 209

ENGINE 156.983 in MODEL 211, 219

ENGINE 156.984 in MODEL 216, 221

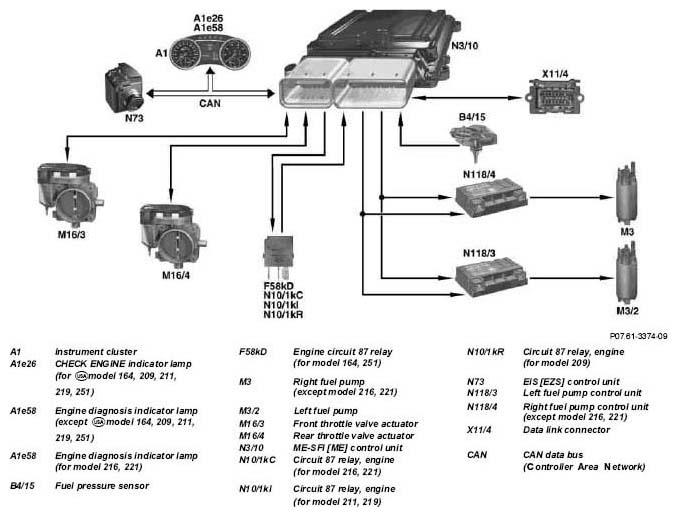

Fig 1: ME-SFI Ignition ON Function Diagram

Courtesy of MERCEDES-BENZ USA

Functions in the case of ignition ON:

• The fuel injection and ignition system (in the ME-SFI [ME] control unit) is supplied with voltage via the engine circuit 87 relay.
• The fuel pump(s) is/are only actuated for about 2 s. for full running security (only for first time for "ignition ON").
• The engine diagnosis indicator lamp or CHECK ENGINE lights up in the instrument cluster (lamp check).
• Data exchange with the EIS [EZS] control unit (terminal 50 signal and drive authorization system) takes place via the CAN data bus.
• The fault memory can be read out and erased via the data link connector.
• Correction programming or diagnosis can be undertaken using STAR DIAGNOSIS via the data link connector.
• Throttle valve actuators check their return springs (via the position of the throttle valve) and perform an actuator adaptation if necessary.
