Correction programming, function - GF07.61-P-3031G
ENGINE 273 in MODEL 463.202/222/236/237 up to 31.5.12 as of model year 2009/YoM 08
Function requirements for correction programming, general points
- Circuit 15 ON (ignition ON)
- Circuit 87M ON (engine control ON)
Correction programming, general points
Different performance maps for the engine control can be stored and activated with the correction programming in the ME-SFI [ME] control unit.
Correction programming function sequence

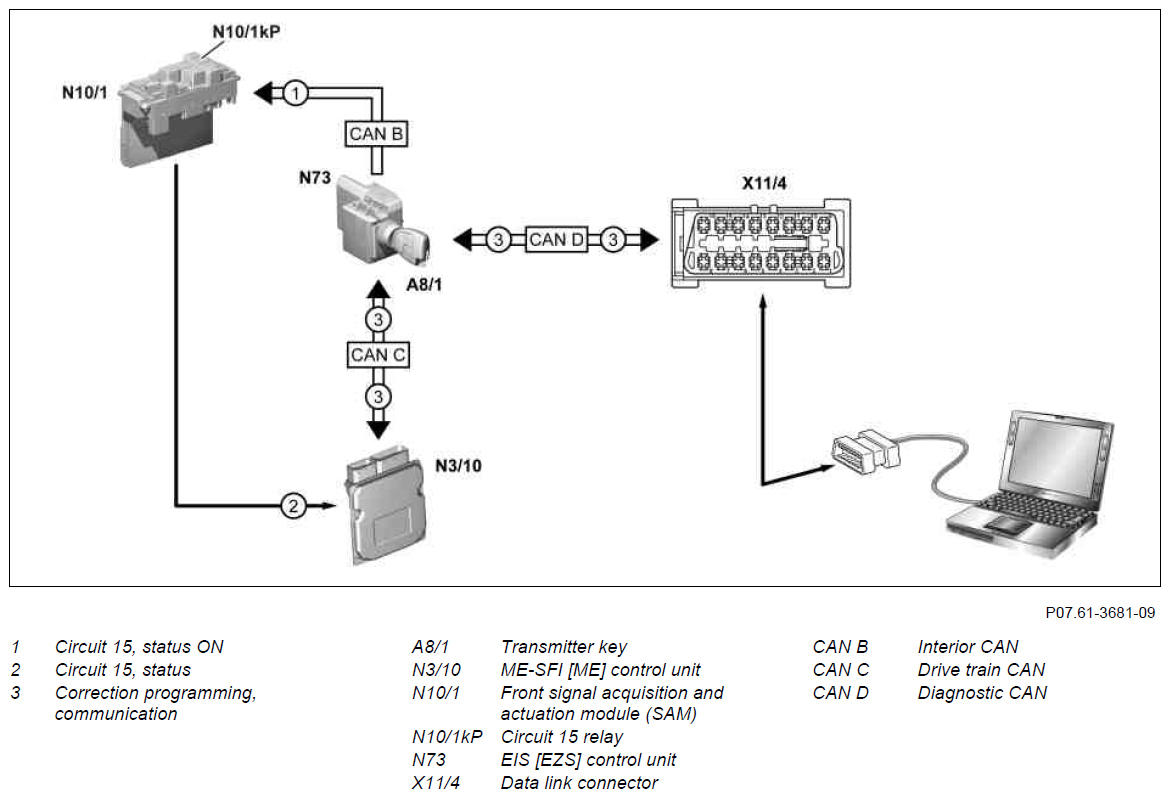

Correction programming is carried out with "ignition ON" over the data link connector using the Diagnosis Assistance System (DAS).
The ME-SFI [ME] control unit is connected to the data link connector via the drive train CAN and diagnostic CAN.
The following performance maps can be influenced (programming):
- Ignition map to adapt to different fuel grades (without code (ZU8) USA version)
- Mixture maps for enrichment of the fuel/air mixture in different operating conditions (except code (ZU8) USA version)
- Basic setting for idle speed
- Idle speed for engaged gear range
- Fault setting conditions for smooth running detection
- Temperature correction for switching the engine and air conditioning electric suction fan with integrated control (M4/7) on and off
| Component description for ME-SFI [ME] control unit | N3/10 | GF07.61-P-6000G |
