Pressure sensor - location/task/design/function - GF07.04-P-5014AM

ENGINE 113.990 /991 /993 up to Model Year 8

ENGINE 113.992 /995

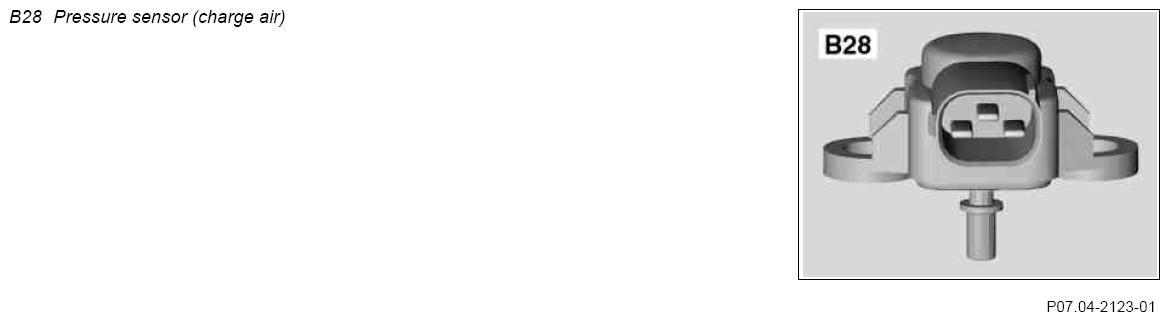

Fig 1: Identifying Pressure Sensor (Charge Air)

Courtesy of MERCEDES-BENZ USA

	Pressure sensor - location		GF07.04-P-5014-01AM
	Pressure sensor - task	The pressure sensor detects the absolute pressure (boost pressure) in the intake manifold in the intake manifold. The ME control unit (N3/10) needs the boost pressure and the charge air temperature to calculate the supplied air mass.
	Pressure sensor - design		GF07.04-P-5014-03AM
	Pressure sensor - function	The intake manifold pressure distorts a diaphragm which acts on the potentiometer. This alters the resistance value of the potentiometer and influences the output voltage, which is used as information regarding the boost pressure. The pressure gauge range is between 0.2 up to 2.5 bar.
