Spark plugs, location/task/design/function - GF15.10-P-3101AM
ENGINE 113.990 /991 /993
ENGINE 113.992 /995 up to Model Year 8

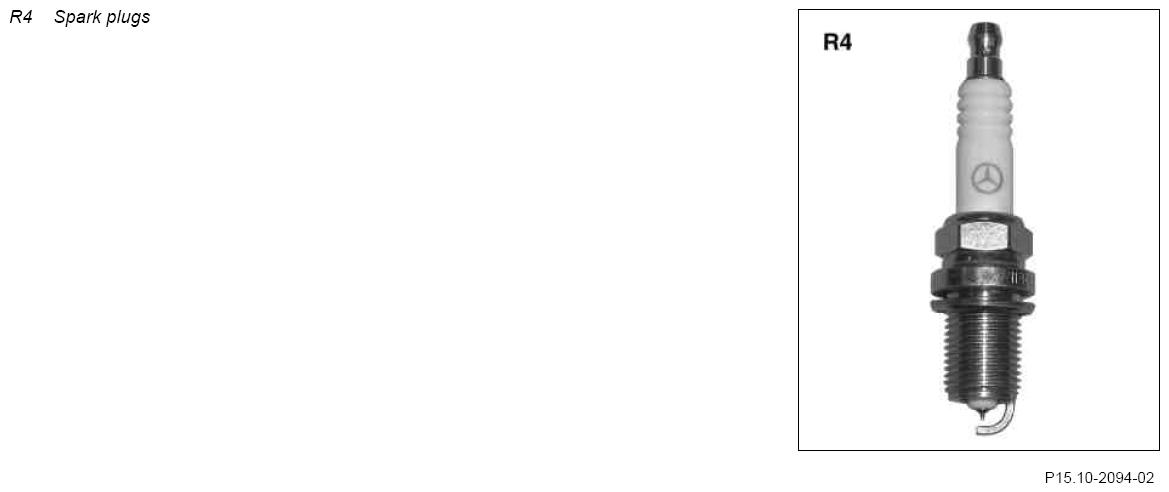

| Spark plugs, location | Two spark plugs per cylinder are fitted in the cylinder head | ||
| Spark plugs, task | The spark plugs ignite the suctioned and compressed fuel-air mixture due to arcing between the electrodes. | ||
| Spark plugs, design | All of the spark plug features are assigned in the manufacturer's specific type symbol (e. g. heat rating, shape of seating, thread, width across flats, electrode material, spark position). | ||
| Spark plugs, function | The ignition voltages flow from the ignition lines of the ignition coils to the spark plugs and cause arcing in the air gap between the central electrode and ground electrode. |
