Accelerator pedal sensor, location/task/design/function - GF30.20-P-4010HA

ENGINE 113.990 /991 /993

ENGINE 113.992 /995 up to Model Year 8

Shown on the accelerator pedal module

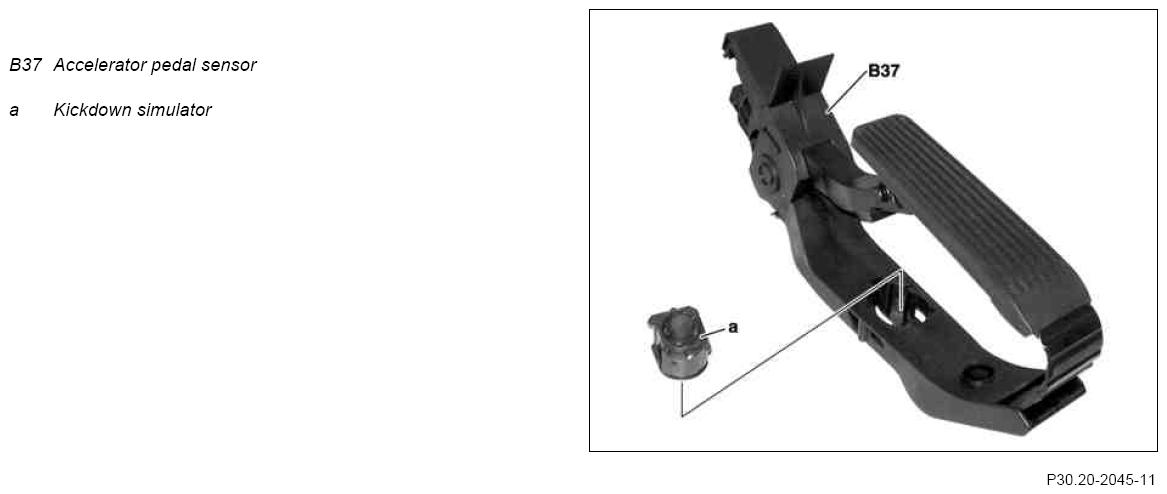

Fig 1: Identifying Accelerator Pedal Sensor And Kickdown Simulator

Courtesy of MERCEDES-BENZ USA

Accelerator pedal sensor location	Models 211, 219	GF30.20-P-4010-01T
Accelerator pedal sensor location	Models 215, 220, 230, 463	GF30.20-P-4010-01R
Accelerator pedal sensor task	The accelerator pedal sensor detects the accelerator pedal position and sends an appropriate voltage signal to the ME control unit (N3/10).
Accelerator pedal sensor design		GF30.20-P-4010-02HA
Accelerator pedal sensor function		GF30.20-P-4010-03HA
