Fuel tank, location/design/function - GF47.10-P-3000T: Notes

MODEL 211 with ENGINE 112.913 /917 /949 /954, 113.967 /969

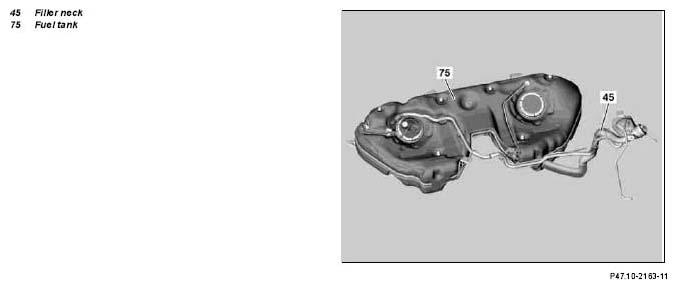

Fig 1: Identifying Fuel Tank And Fuel Neck Location

	Fuel tank position	The fuel tank is positioned at the frame floor ahead of the rear axle because of the throughloading facility (from trunk into passenger compartment). T-Model: Position as for sedan.
	Fuel tank design		GF47.10-P-3000-02T
	Fuel tank function		GF47.10-P-3000-01T
