Esp/SPS/BAS Control Module Connector End View (N47-5, Conn. 2)

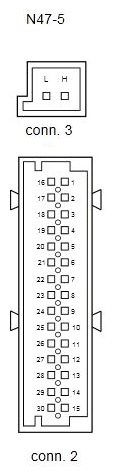

Fig 1: ESP/SPS/BAS Control Module Connector End View (N47-5, Conn. 2)
G11072987Courtesy of MERCEDES-BENZ USA
