Telephone interface, location/task/design/function - GF82.70-P-3107T: Notes

Model 211.0 /2

Shown on model 211.0

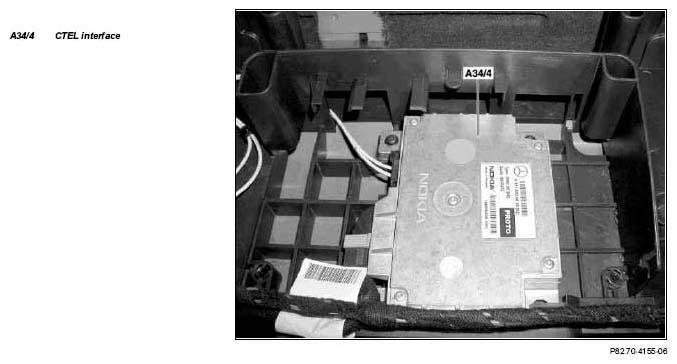

Fig 1: Identifying CTEL Interface Location - Shown On Model 211.0
G04987471
  Telephone interface, location The telephone interface (A34/4) is in the luggage compartment base plate directly beneath the rear bench seat.
    Model 211.2 GF82.70-P-3107-01T
  Telephone interface, purpose
  • The telephone interface (A34/4) makes it possible for the CTEL (A34/6) to communicate with the MOST.
  • The CTEL (A34/6) is charged using the telephone interface (A34/4).
  • It establishes the antenna connection to the vehicle.

  Telephone interface, design
  • MOST interface
  • Signal processing and conversion
  • MOST wake-up signal input

  Telephone interface, function   GF82.70-P-3107-02T
