Fan control, function - GF07.61-P-3023AM

ENGINE 113.990 in MODELS 211, 219

ENGINE 113.991 in MODELS 215, 220

ENGINE 113.992 in MODEL 230

ENGINE 113.993 in MODEL 463

ENGINE 113.995 in MODEL 230

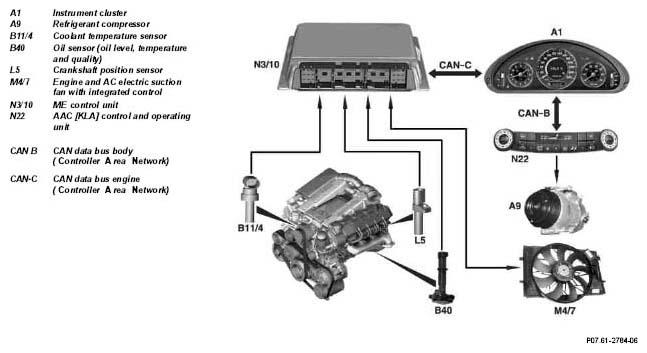

Fig 1: Fan Control Function Diagram

The ME control unit indirectly actuates the electric suction fan engine and AC continuously.

The fan specified speed is transmitted by the ME control unit via a pulse width modulated signal (PWM signal).

The on/off ratio is 10 to 90%.

Meaning:

10% Electric suction fan "OFF"

20% Electric suction fan "ON", minimum speed

90% Electric suction fan "ON", maximum speed

The AAC control and operating unit transmits the status of the automatic air conditioning via the CAN data bus to the ME control unit. The fan specified speed is dependent on this and on the coolant temperature.

The electrical suction fan for engine and AC runs on for "ignition OFF" for up to 5 minutes if the maximum specified value for the coolant temperature or the engine oil temperature is exceeded. If the battery voltage drops excessively during this operation, engine-off running is suppressed.

Models 211, 219, 230

If an SBC undervoltage exists, the fan speed is limited and the fault code is stored in the ME control unit.

	Crankshaft position sensor, location/task/design/function		GF07.04-P-4116AM
	Coolant temperature sensor, location/task/design/function		GF07.04-P-5026AM
	ME-SFI control unit, location/task/design/function		GF07.61-P-5000AM
	Oil sensor, location/task/design/function		GF18.40-P-4111AM
