CDI limiting full load injected quantity, function - GF07.16-P-3006IC
ENGINE 647.961 in MODEL 211
ENGINE 648.960 in MODEL 220
ENGINE 648.961 in MODEL 211
Limiting the full-load injection quantity minimizes the smoke formation during full-load operation.

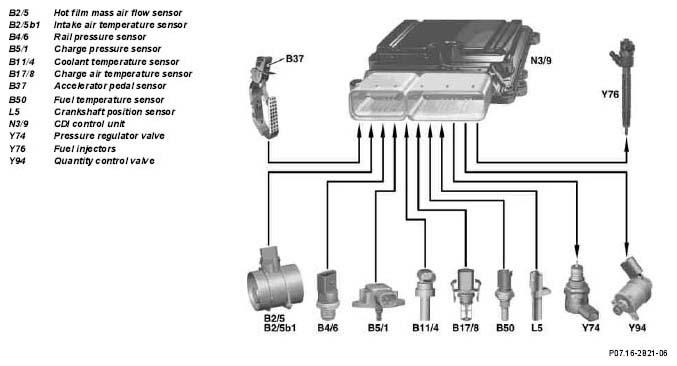

The CDI control unit limits the injection quantity during full-load operation. For this purpose, it lowers the rail pressure via the quantity control valve or the pressure regulator valve and injection timing via the fuel injectors.
In this way smoke formation is minimized on acceleration and during continuous driving at full load.
If a fault in boost pressure control is detected, the full load injection quantity is also reduced.
| Component description for the fuel injectors | Y76 | GF07.03-P-6120IC | |
| Component description for the crankshaft position sensor | L5 | GF07.04-P-6010IC | |
| Component description for the coolant temperature sensor | B11/4 | GF07.04-P-6040IC | |
| Component description for the charge air temperature sensor | B17/8 | GF07.04-P-6050IC | |
| Component description for the boost pressure sensor | B5/1 | GF07.04-P-6051IC | |
| Component description for the rail pressure sensor | B4/6 | GF07.04-P-6210IC | |
| Component description for the quantity control valve | Y94 | GF07.05-P-6010IC | |
| Component description for the pressure regulator valve | Y74 | GF07.05-P-6020IC | |
| Component description for the hot film MAF sensor | B2/5, B2/5b1 | GF07.07-P-6000IC | |
| Component description for the CDI control unit | N3/9 | GF07.16-P-6000IC | |
| Component description for the accelerator pedal sensor | B37 | GF30.20-P-2010IC | |
| Component description for the fuel temperature sensor | B50 | GF47.50-P-2010IC |
