Fuel tank pressure sensor - location/task/function - GF47.30-P-4032AM: Notes
MODELS 211, 219 with ENGINE 113.990 with CODE (494) USA version
MODELS 215, 220 with ENGINE 113.991 with CODE (494) USA version
MODEL 230 with ENGINES 113.992 /995 with CODE (494) USA version
MODEL 463 with ENGINE 113.993 with CODE (491) USA version

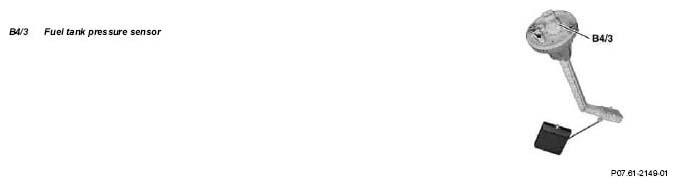

Shown on fuel level sensor (B4) from models 215, 220
| Fuel tank pressure sensor position | The fuel tank pressure sensor is located at the top in the fuel level sensor. | ||
| Models 211, 219 | GF47.30-P-4032-01T | ||
| Models 230, 463 | GF47.30-P-4032-01RM | ||
| Fuel tank pressure sensor task | The fuel tank pressure sensor detects the pressure inside the fuel tank for testing the leaks in the fuel system (leak test). | ||
| Fuel tank pressure sensor function | The fuel tank pressure sensor detects the internal pressure of the fuel tank and issues a corresponding voltage signal to the ME-SFI [ME] control unit (N3/10). The voltage supply of 5 V is comes directly from the ME control unit. The measuring range extends from approx. -50 mbar to approx. +30 mbar. |
