Front seat ventilation switch, location/task - GF91.30-P-3009Q
MODEL 209.3 /4 as of 1.6.04 with CODE (401a) Front luxury seat, incl. heated seat and seat ventilation

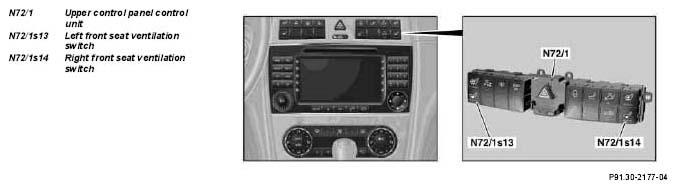

| Front seat ventilation switch, location | The left front seat ventilation switch (N72/1s13) and the right front seat ventilation switch (N72/1s14) are located in the upper control panel control unit (N72/1). | ||
| Front seat ventilation switch, task | Switching the seat ventilation on, over, and off manually and display of the ventilation stage with the aid of integrated LEDs. |
