Left Front Door Control Module Connector End View (N69/1)

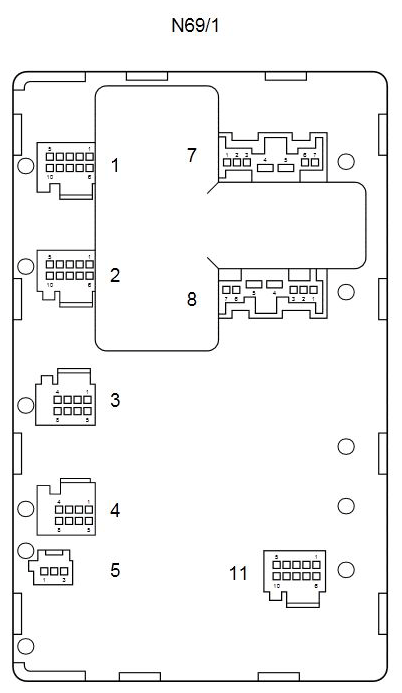

Fig 1: Left Front Door Control Module Connector End View (N69/1)
G11067781Courtesy of MERCEDES-BENZ USA
