Storing steering column position, function - GF46.15-P-2003PP

MODELS 203.0 /2 /7 with CODE (275c) Electrically adjustable driver seat, steering column and exterior mirrors with memory with CODE (242b) Electrically adjustable front passenger seat with memory

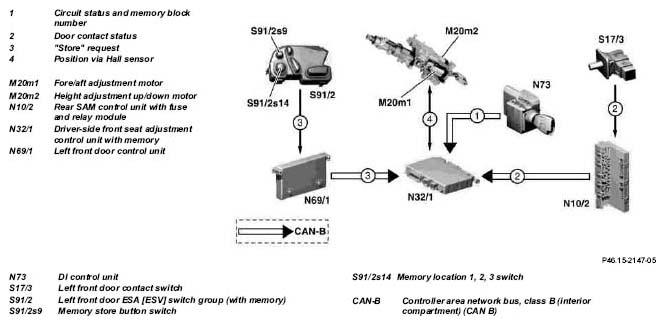

Illustrated on model as of 1.7.02

Manual storage

Function prerequisites

• Circuit 15R On or circuit 15 On or
• Driver door open.

Function

• Select memory position by rotating the memory switch 1, 2, 3 (S91/2s14).
• Press memory switch (S91/2s9) for approx. 0.4 seconds and release again.
• Press memory switch 1, 2, 3 (s14) within 3 seconds (S91/2).

The positions of the steering column are stored in the driver-side front seat adjustment control unit with memory (N32/1) depending on the key.

In addition the position of the driver seat and outside mirrors are stored in each memory.

Automatic memory

Function

Key-dependent storage of the current position (driving position) takes place with the transition from circuit 15 to circuit 15R.

In addition the position of the driver seat and outside mirrors are stored.

These positions are approached automatically when the appropriate transmitter key is used.

Memory block number

The transmitter keys are managed with the memory block number. The memory block number is issued by the electronic ignition switch control unit (N73).

	Function of steering column adjustment motor position measurement		GF46.15-P-3000PP
	Steering column adjustment motor group, location/task		GF46.15-P-4103PP
	Steering column adjustment switch, location/ task	up to 30.6.02	GF46.15-P-5001PA
		as of 1.7.02	GF46.15-P-5001PP
	Front driver-side door control unit, location/task/ design/function		GF72.29-P-4105PP
	Left front seat adjustment control unit with memory location/task		GF91.29-P-2106PP
	Electronic ignition switch control unit, location/ task/design/function		GF80.57-P-4102PP
	Front seat adjustment switch group, location/ design		GF91.29-P-2112PP
