Remove/install starter - AR15.30-P-7100QB

ENGINE 272.920 in MODELS 203.052 /252 /752

ENGINE 272.940 in MODELS 203.054 /254, 209.354 /454

ENGINE 272.960 in MODELS 203.056 /256 /756, 209.356 /456

ENGINE 272.970 in MODELS 203.087 /287

ENGINE 272.941 in MODELS 203.092 /292

ENGINE 273 in MODEL 209

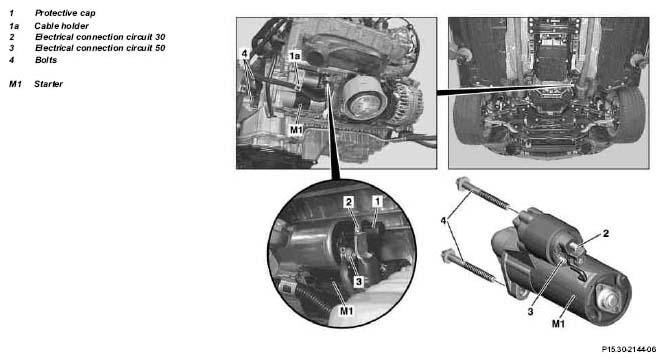

Fig 1: Identifying Starter Remove/Install Components - Engine 272.920/940/941

	Remove/install
	Risk of injury  caused by fingers being pinched or crushed  when removing, installing or aligning hoods, doors, trunk lids, tailgates or sliding roof.	Keep body parts and limbs well clear of moving parts.	AS00.00-Z-0011-01A
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of lifting platform and position four support plates at lifting platform support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1	Open engine hood	Model 203	AR88.40-P-1000P
		Model 209	AR88.40-P-1000Q
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
2	Disconnect ground line from battery	Insulate ground line clamp as a protection against unintentional contact of dismounted ground line with ground point of battery.
	Notes on battery		AH54.10-P-0001-01A
		Model 203	AR54.10-P-0003P
		Model 209	AR54.10-P-0003Q
3	Raise vehicle with lifting platform		AR00.60-P-1000P
4	Dismount lower engine compartment paneling		AR61.20-P-1105P
5.1	Detach the right catalytic converter from the exhaust manifold and the catalytic converter bracket	Model 203 except 203.087 /092 /287 /292, model 209 with engine 272
		See "Remove/install catalytic converter or front exhaust system".	AR49.10-P-5531QB
5.2	Remove complete exhaust system	Model 203.087 /092 /287 /292, model 209 with engine 273	AR49.10-P-7000QB
6	Remove exhaust shielding plate on the right for front axle gear propeller shaft	Model 203.087 /092 /287 /292
7	Pull out protective cap (1) and dismantle electrical connection circuit 30 (2) at starter (M1)		*BA15.30-P-1001-01J
8	Dismount cable holder (1a) from starter (M1)
9	Dismount electrical connection terminal 50 (3) at starter (M1)		*BA15.30-P-1002-01J
10	Remove bolts (4) and starter (M1) from the bottom.		*BA15.30-P-1003-01J
11	Crank engine at center bolt of crankshaft in the direction of rotation of the engine and check the ring gear at the flywheel/drive plate for wear and damage	Only when replacing the starter (M1).
12	Install in the reverse order

STARTER
