Remove/install starter - AR15.30-P-7100Q

ENGINE 271.940 in MODEL 203.042 /242 /742, 209.342 /442 with TRANSMISSIONS 716.6, 722.6

ENGINE 271.942 in MODEL 203.043 /243 /743, 209.343 with TRANSMISSIONS 716.6, 722.6

ENGINE 271.946 in MODEL 203.046 /246 /746 with TRANSMISSIONS 716.6, 722.6

ENGINE 271.948 in MODEL 203.040 /240 /740 with TRANSMISSIONS 716.6, 722.6

ENGINE 271.921 in MODEL 203.730 with TRANSMISSIONS 716.6, 722.6

ENGINE 271.955 in MODEL 209.341 /441 with TRANSMISSION 716.6, 722.6

Shown on engine 271.940 in model 209.342

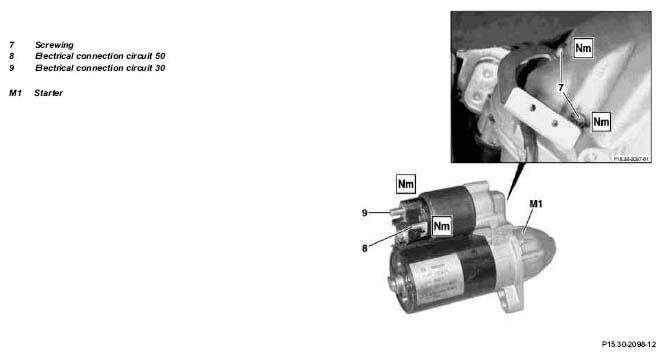

Fig 1: Identifying Starter Remove/Install Components - Shown On Engine 271.940 In Model 209.342 (1 Of 2)

Shown on engine 271.940 in model 209.342

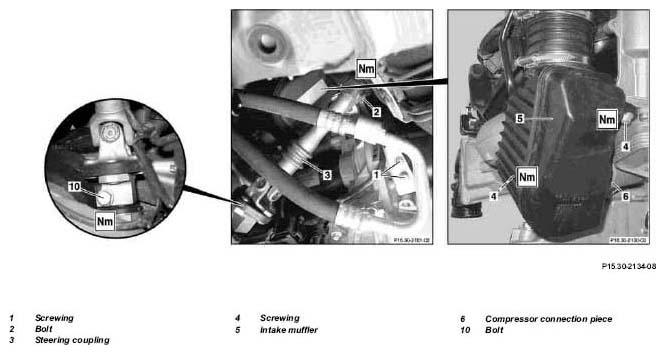

Fig 2: Identifying Starter Remove/Install Components - Shown On Engine 271.940 In Model 209.342 (2 Of 2)

	Remove/install
	Risk of death  caused by vehicle slipping or toppling off the lifting platform.	Align vehicle between columns of vehicle lift and position four support plates at vehicle lift support points specified by vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
1.1	Deactivate easy entry/exit function for driver seat and steering wheel	With driver seat, steering column and electrically adjustable outside mirror with memory code 275 When easy entry/exit for the driver seat and steering wheel is activated, the memory position is activated when the ignition is switched on or the driver door is opened and closed, therefore the top frame can be damaged where a securing device is fitted. Deactivation takes place via the instrument cluster. Select Individual Settings in the main menu and follow menu instructions.
2.1	Move the electrically adjustable steering column all the way out	With driver seat, steering column and electrically adjustable outside mirror with memory code 275
2.2	Open lock of steering column and pull out steering column fully, close lock	In the case of a mechanically adjustable steering column
3	Rotate steering wheel to the center position	The front wheels must be in the straight-ahead position.
4	Lock steering wheel	With a disengaged steering coupling (3), the steering wheel should not be twisted because the clock spring contact will be destroyed.
		Retainer	Fig 3
5	Disconnect ground line from battery	Model 203	AR54.10-P-0003P
		Model 209	AR54.10-P-0003Q
	Notes on battery		AH54.10-P-0001-01A
6	Detach lower engine compartment paneling		AR61.20-P-1105P
7	Dismount refrigerant line	Unscrew two bolts (1) and place refrigerant line to the side.
8	Remove steering coupling (3)	Pull out bolt (2) and steering coupling (3) from steering shaft. Undo bolt (10) and remove. Pry off steering coupling (3) from rack-and-pinion steering.
		Bolt, steering coupling to steering shaft	*BA46.10-P-1001-01E
		Self-locking nut, steering coupling to rack-and-pinion steering	*BA46.10-P-1002-01E
9	Remove intake muffler (5)	Undo bolts (4) of intake muffler (5) and pry off intake muffler (5).
		Intake muffler to supercharger	*BA09.50-P-1004-01C
10	Remove line at electrical connection circuit 50 (8) at starter (M1)	Nut for connection circuit 50	*BA15.30-P-1002-01A
11	Detach lines on electrical connection for circuit 30 (9) on starter (M1)	Nut for connector for terminal 30	*BA15.30-P-1001-01A
12	Remove starter (M1)	Undo bolts (7) and remove starter (M1) from bottom.
		Bolt connecting starter to crankcase	*BA15.30-P-1003-01A
13.1	Check ring gear at flywheel for wear and damage	When replacing starter (M1) on vehicles fitted with manual transmission Rotate engine at crankshaft in direction of rotation.
13.2	Check ring gear at the drive plate for wear and damage	When replacing the starter (M1) on vehicles fitted with automatic transmission Rotate engine at crankshaft in direction of rotation.
14	Install in the reverse order
	Risk of accident  caused by vehicle starting off by itself when engine is running. Risk of injury  caused by contusions and burns during starting procedure or when working near the engine as it is running	Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Carry out function check
16	Perform basic programming	Model 203	AR00.19-P-0200P
		Model 209	AR00.19-P-0200Q
17	Read out fault memory and erase	Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in the fault memories after completing the work.
	Connect STAR DIAGNOSIS and read out fault memory		AD00.00-P-2000-04A

SUPERCHARGER

STARTER

STEERING SHAFT

Fig 3: Identifying Holding Device (129 589 01 21 00)
