Seat occupied recognition system with automatic child seat recognition, location/task/design/function - GF91.60-P-4008R: Notes

MODEL 230 with CODE (494) USA version

MODEL 230 up to 28.2.06 with CODE (494) USA version

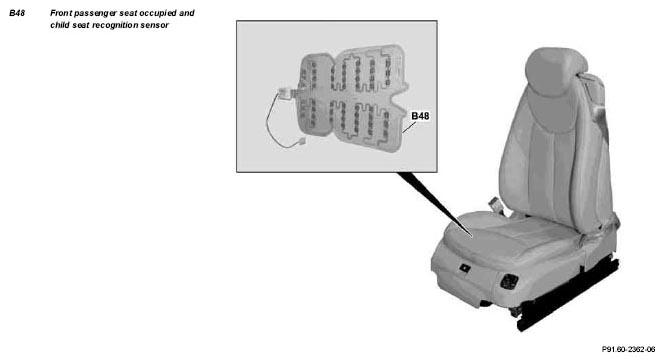

Fig 1: Locating Front Passenger Seat Occupied And Child Seat Recognition Sensor

G04738178

Courtesy of MERCEDES-BENZ USA

	Seat occupied recognition sensor with automatic child seat recognition, location	The passenger seat occupied and child seat recognition sensor (B48) is integrated into the seat cushion on the front passenger seat.
	Seat occupied recognition sensor with automatic child seat recognition, task	The front passenger seat occupied and child seat recognition sensor (B48) is used to determine front passenger seat occupation, the corresponding belt warning display and to detect a DaimlerChrysler approved and coded child seat inclusive its installation position.
	Seat occupied recognition sensor with automatic child seat recognition, design		GF91.60-P-4008-02R
	Seat occupied recognition sensor with automatic child seat recognition - function		GF91.60-P-4008-03R
