Seat belt buckle switch, component description - GF91.60-P-4045T

MODELS 211.0/ 2

Location

The seat belt buckle switches are integrated in the seat belt buckle of the driver or in the seat belt buckle of the front passenger.

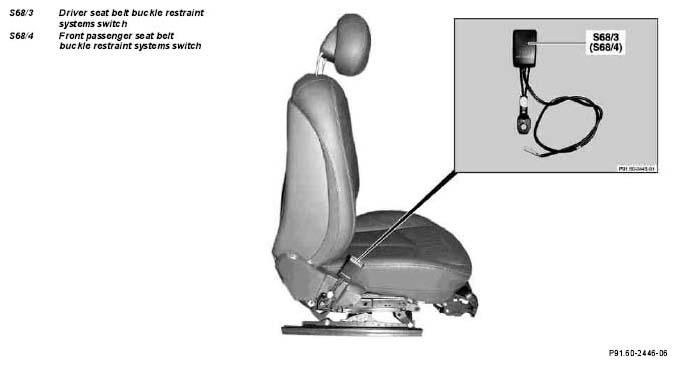

Fig 1: Identifying Driver/Front Passenger Seat Belt Buckle Restraint System Switch
G04987012

Task

The seat belt buckle switches monitor whether the seat belts on the driver seat or front passenger seat are fastened and supply the corresponding signal for the output of the seat belt reminder warning in the instrument cluster (A1).
