Wiring Diagrams
>>
OEM Connector End Views -- 170 Chassis
>>
Connector End Views
>>
A/C Push-Button Control Module Connector End View (N19)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
A/C Push-Button Control Module Connector End View (N19)

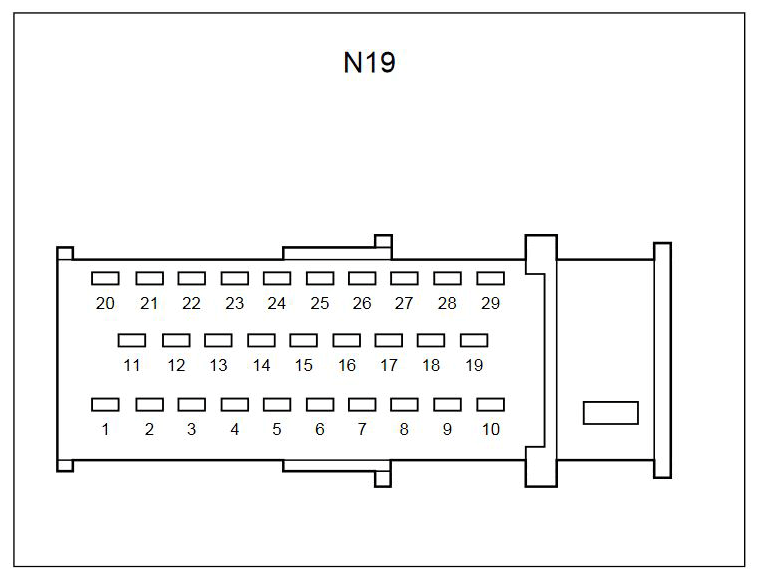

Fig 1: A/C Push-button Control Module Connector End View (N19)
Courtesy of MERCEDES-BENZ USA
