Wiring Diagrams
>>
OEM Connector End Views -- 215 Chassis
>>
Connector End Views
>>
Upper Control Field Control Module Connector End View (N72/1)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Upper Control Field Control Module Connector End View (N72/1)

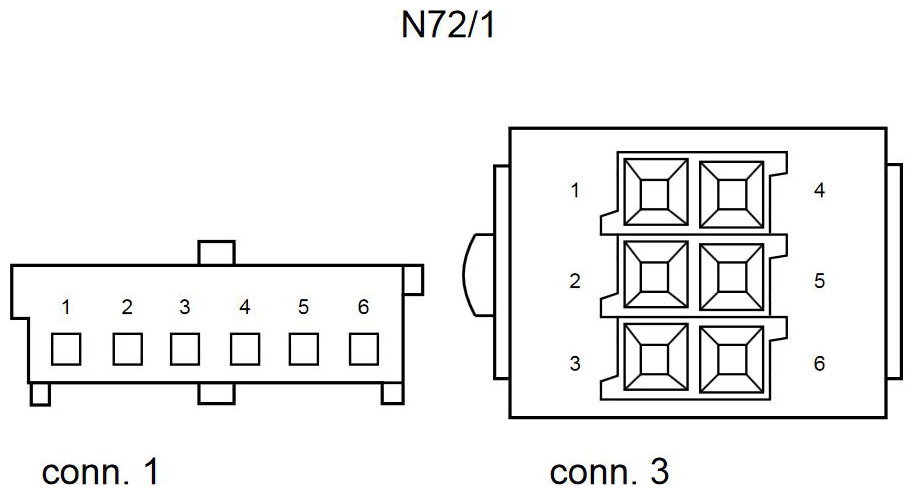

Fig 1: Upper Control Field Control Module Connector End View (N72/1)
Courtesy of MERCEDES-BENZ USA
