Ea/Cc/ISC Control Module Connector End View (N4/1)

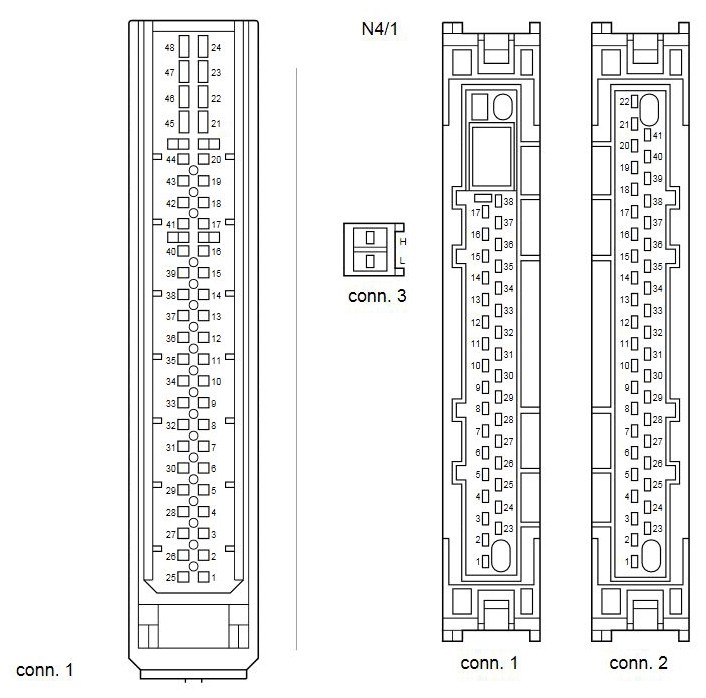

Fig 1: EA/CC/ISC Control Module Connector End View (N4/1)
Courtesy of MERCEDES-BENZ USA
