Refrigerant compressor, location/task/design/function - GF83.55-P-2100GH
ENGINES 111.977, 112.942, 113.942/981, 612.963 in MODEL 163 up to 31.08.01 with CODE (580) Air conditioning or Tempmatic for USA refrigerant compressor 7SB16C

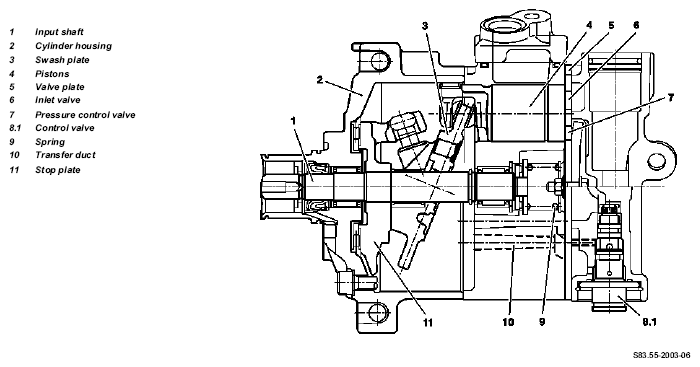

Design
Refrigerant compressor 7SB16C
| Refrigerant compressor, position | GF83.55-P-2100-01GH | ||
| Refrigerant compressor, task | The refrigerant compressor (A9) is responsible for induction and compression of the refrigerant. | ||
| Refrigerant compressor, function | GF83.55-P-2100-02A |
