Rear blower motor, position/task/design/function - GF83.10-P-2168GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

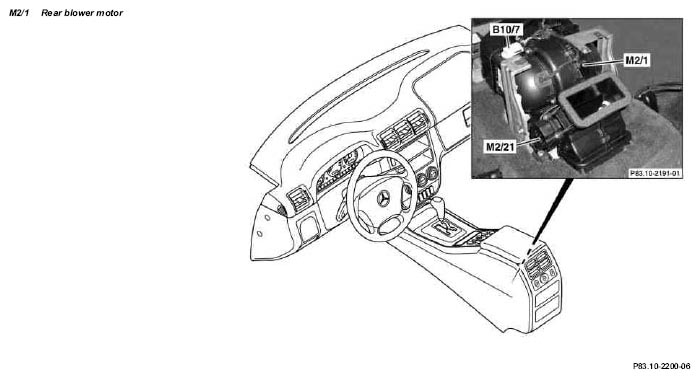

| Blower, location | The rear blower motor (M2/1) is located behind the rear nozzle below the center console. | ||
| Blower, task | The rear blower motor (M2/1) serves to improve ventilation and cooling in the rear. The air that is drawn in by the blower in the evaporator housing is led to the rear blower motor (M2/1) via air ducts. The rear blower motor (M2/1) increases the flow of air. |
||
| Blower, function | GF83.10-P-2168-01GI |
