In-car temperature sensor, location/task/function - GF83.57-P-2115GI

MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

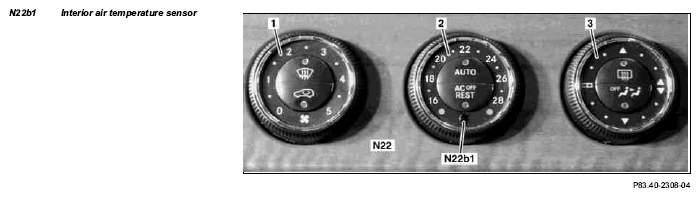

Fig 1: Identifying Interior Air Temperature Sensor

Courtesy of MERCEDES-BENZ USA

	In-car temperature sensor, location	The in-car temperature sensor (N22b1) is located below in the temperature selector wheel of the AAC push-button control module.
	In-car temperature sensor, task	The in-car temperature sensor (N22b1) records the in-car temperature and sends it to the AAC push-button control module (N22).
	In-car temperature sensor, function	The recorded in-car temperature value is compared by the AAC push-button control module with the setting in the temperature selector wheel whereupon it authorizes a corresponding adjustment to the blending air flap to be made depending upon the result.
